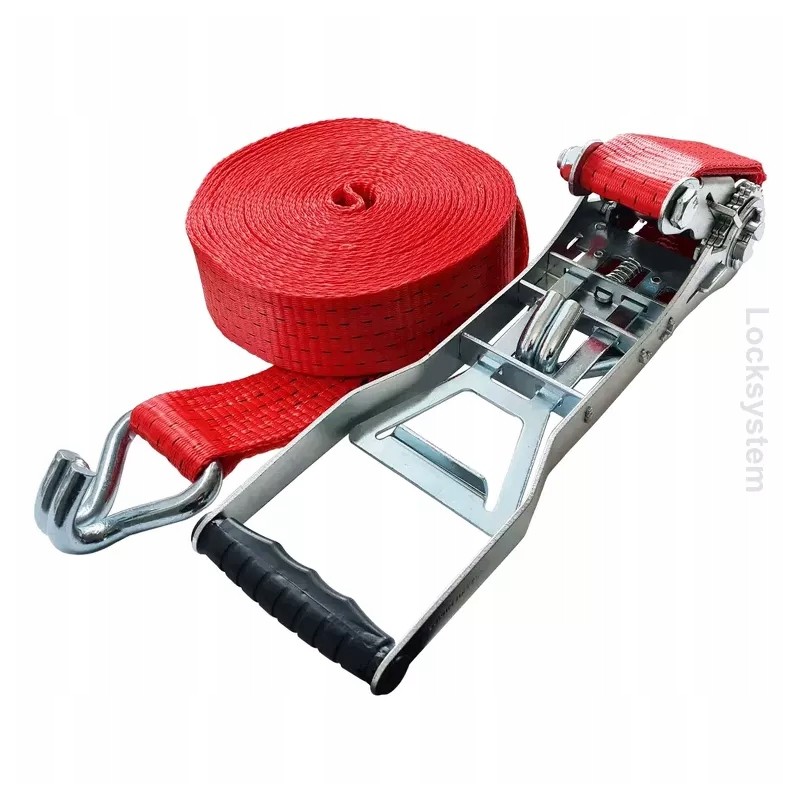

5t 8m ergo belt for securing load securing

Transport belt for securing and securing loads ERGO 5 tons 8 meters 2500 LC 600 STF Produced in accordance with the EN 12195-2 standard applicable throughout Europe.

One set includes:

tape with hook (long part)

tensioner with tape and hook (short part)

Technical parameters: Tensioner

Tape width 50 mm

The strength of the lashing strap is 2500 daN

Breaking force 5000 daN

Standard tension force (STF) 600 daN

Material - PES

Length L1 - 0.5 m (length of the belt at the tensioner)

Hook: double claw

Transport belt

Tape width: 50 mm

LC permissible load in a straight system - 2500 daN

LC permissible belt load - 5000 daN

SHF = 50 daN

Material - PES

Length of the L2 belt - 7.5 m

Hook: double claw

EN-12195-2 standard that applies throughout Europe. It establishes safety requirements for transport belts. A label with this standard gives us a guarantee of quality and safety. The value of 50 daN means that we can apply a force of 50 daN (50 kg) to the lever.

LC fastening capacity, i.e. permissible load - this is the highest force for which the belt can be used in a straight system (straight tension, i.e. in a straight line). The standard value is 2500daN. When securing the load using the strapping method, the securing capacity is doubled.

SHF nominal hand force – the maximum force that can be used to tension the hand tensioner. This is the force with which we can act on the lever. Greater force may deform the tensioner. The standard value of this parameter is 50 daN. The value of 50 daN means that we can act on the lever with a force of 50 daN (50 kg).

STF nominal tension force – the force with which the load will be pressed to the ground. Pressing it against the ground increases friction and secures the load better.

Material: PES – polyester PA – polyamide PP – polypropylene

Transport belt for securing and securing loads 4 tons 4 meter 1600 LC 400 STF Manufactured in accordance with the EN 12195-2 standard applicable throughout Europe.

One set includes:

tape with hook (long part)

tensioner with tape and hook (short part)

Technical parameters: Tensioner

Tape width 50 mm

The strength of the lashing strap is 1600 daN

Breaking force 3200 daN

Standard tension force (STF) 400 daN

Material - PES

Length L1 - 0.5 m (length of the belt at the tensioner)

Hook: double claw

Transport belt

Tape width: 50 mm

LC permissible load in a straight system - 1600 daN

LC permissible belt load - 3200 daN

SHF = 50 daN

Material - PES

Length of the L2 belt - 3.5 m

Hook: double claw

EN-12195-2 standard that applies throughout Europe. It establishes safety requirements for transport belts. A label with this standard gives us a guarantee of quality and safety. The value of 50 daN means that we can apply a force of 50 daN (50 kg) to the lever.

LC fastening capacity, i.e. permissible load - this is the highest force for which the belt can be used in a straight system (straight tension, i.e. in a straight line). The standard value is 2500daN. When securing the load using the strapping method, the securing capacity is doubled.

SHF nominal hand force – the maximum force that can be used to tension the hand tensioner. This is the force with which we can act on the lever. Greater force may deform the tensioner. The standard value of this parameter is 50 daN. The value of 50 daN means that we can act on the lever with a force of 50 daN (50 kg).

STF nominal tension force – the force with which the load will be pressed to the ground. Pressing it against the ground increases friction and secures the load better.

Material: PES – polyester PA – polyamidePP – polypropylene
