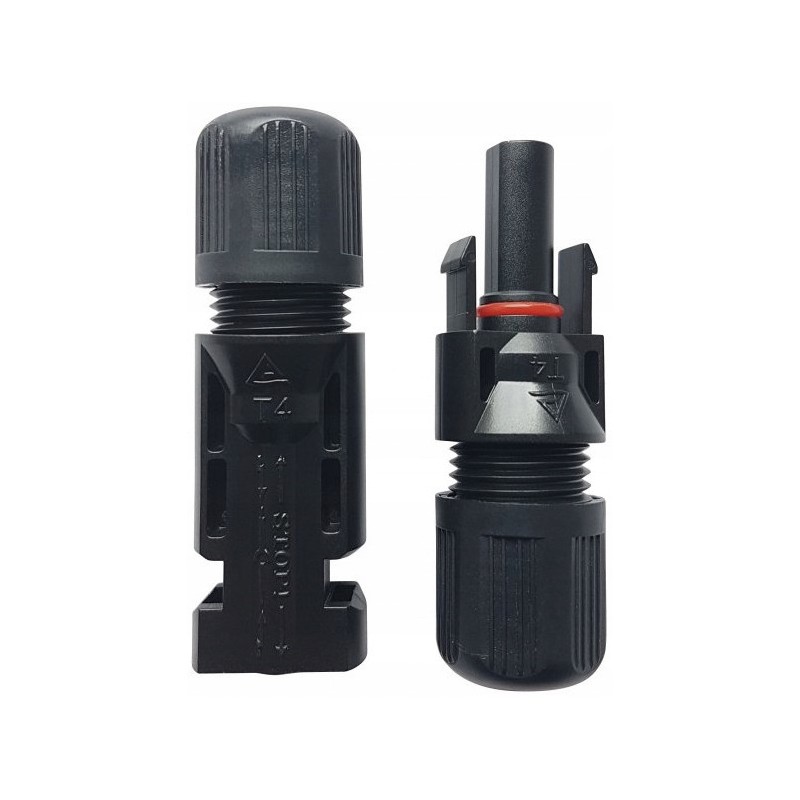

MC4 SERIAL CONNECTORS MC4 serial connectors are used to hermetically connect solar cables. Suitable for 2.5 mm2, 4 mm2 and 6 mm2 solar cables. Connecting solar cables using connectors is quick and reliable.
PRODUCT DESCRIPTION:
Manufacturer: 4sun
Model: SY-MC4-2
Housing material: PPO
Contact material: tin-plated copper
Suitable for cables: 4.0mm² ~6.0mm² 12AWG-10AWG
Resistance: below 0.3 mΩ
Waterproof: IP 67
Pin dimensions: Ø 4mm
Flame class: UL94-V0
Rated voltage: TUV 1000V DC / UL 600V DC
Rated current: 20A-30A
Protection class: class II
Pollution degree: 2
Product code: A0004
