Powerful 90b5 and 20 electric motor gear

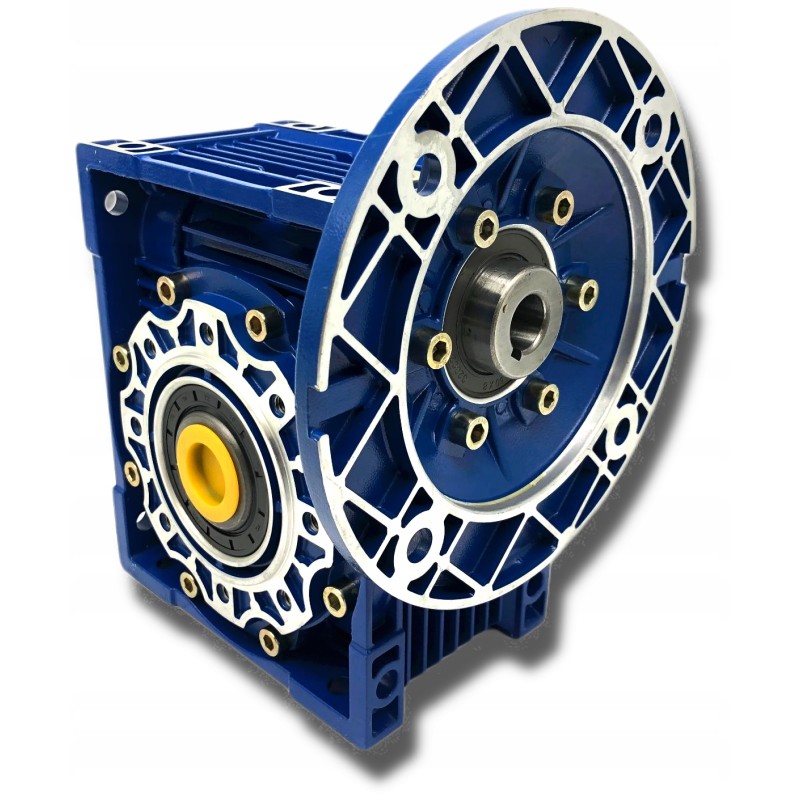

Electric motor gearbox / gearmotor with flange 90B5 SKRAW MET CODE: [3522] Manufacturer: SM-G (SKRAW MET GROUP) Symbol: PM--090 Mounting type: flange Gear ratio: i = 20 THE SET INCLUDES SCREWS WITH NUTS AND WASHERS The cylindrical gear motor is an electromechanical system drive whose task is to change the rotational speed and torque.

ERC gears with helical gears are a new generation of mechanical-electric products designed as a modular system for feeding systems on poultry farms.

Dedicated to reducing the drive of electric motors MS 90 with mounting flange (B5) and drive shaft Φ24 mm.

Works with regular motors, brake motors, explosion-proof motors, inverter-powered motors, servo motors, IEC motors, etc.

Main features: - Extremely durable, very good quality

- Excellent heat dissipation ensures continuous operation under load

- Guarantees long-term and failure-free operation

Gears are lubricated with synthetic oil with a viscosity of VG 320.

Perfect as a replacement for geared motors from companies such as: NMRV Motovario

WMI STM

Technical specifications: Pm: 200mm

Dm: 24 mm

bm: 8 mm

tm: 27.3 mm

Flange dimensions P: 200 mm

M: 165 mm

N: 130 mm

D: 24 mm

Additionally, the set includes a side cover for the gearmotor, complete with four screws fastening. It fits both the left and right side, it is universal.
