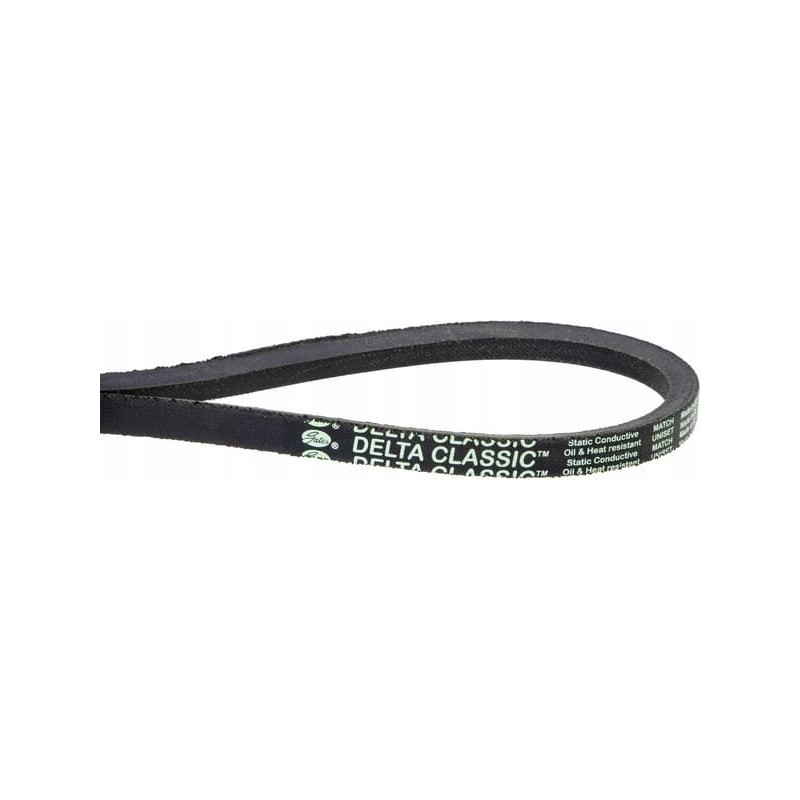

V-belt z10x703li 725ld z703ca gates delta

V-belt Z10x703Li, 725Ld Parameters

Part number: Z703CA

Unit: Piece

Manufacturer: Gates Delta

EAN: 5414465287374

Profile: Z/10

Base length: 725 mm

Width: 10 mm

Bottom width: 5.9 mm

Height: 6 mm

Internal length: 703 mm

External length: 741 mm

Material: Styrene-butadiene rubber (SBR)

Core material: Polyester

Operating temperature min.: -30 °C

Operating temperature max.: 70 °C

Diameter pulley min.: 45 mm

Number of sections {grooves}: 1

Punched: No

Low length tolerance: No

Serrated: No

To tensioner: No

Oil resistance: Yes

Electrical discharge: No

With additional outer layer. : Yes

Package quantity: 1 pc.

Specifications

- Flex-Weave® wrap provides good oil resistance, excellent adhesion and protects against abrasion< p>

Application

- Construction machinery

- Agricultural machinery

- Garden machinery

Properties

- High quality rubber from which the belt is made

- Durable polyester fibers protect against tensile forces, material fatigue and sudden loads

- Suitable for operation at temperatures from -30° C to +70°C

- Antistatic (ISO 1813) and compliant with REACH and RoHS 2

Technical information

- Division length = internal length + 22 mm

- External length = internal length + 38 mm

Benefits

- Guarantee of good flexibility, stability and smooth operation
