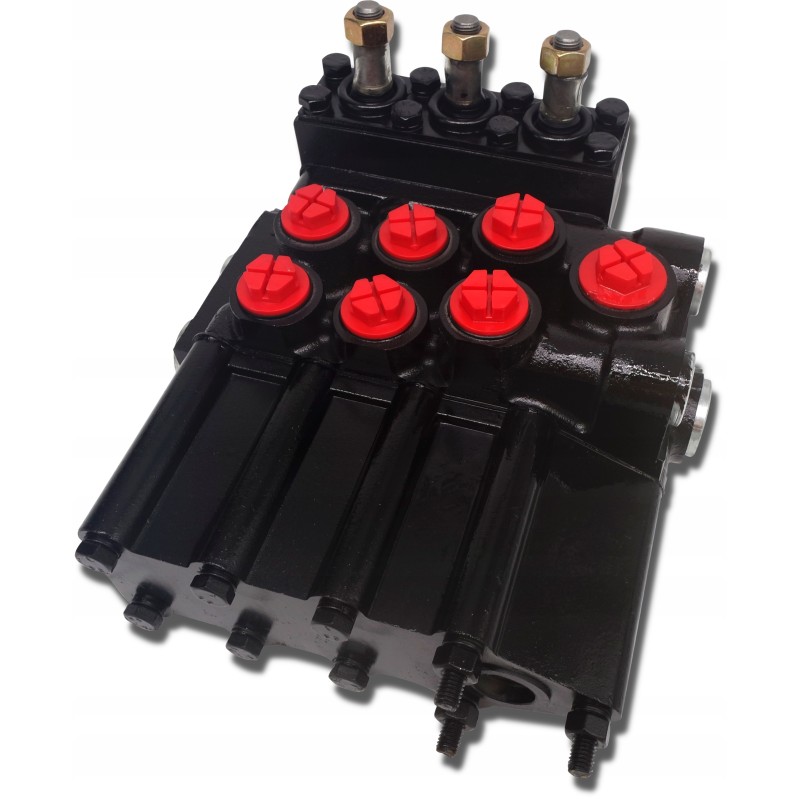

Hydraulic distributor 3 sec mtz belarus m20 m24

3-SECTION HYDRAULIC DIVIDER FOR MTZ BELARUSKO SKRAW MET: [3784]The high-quality, monoblock distributor is characterized by a compact structure, stable operation and high versatility.

It is possible to connect it in series to the existing system.

Application: The distributor is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.

The type of distributor is adapted to work with, among others, . hydraulic actuators.

Universal distributor, used in various types of machines such as: Cyclops

Tury

Loaders

Plows

Forklifts and many others

Three-position lever (1 - 0 - 2) Position 0 neutral (lever set vertically), the actuator piston rod is standing - the oil goes to the overflow.

Working position 1 (lever set in a forward diagonal position), the actuator piston rod extends.

Working position 2 (lever set in a backward diagonal position), the actuator piston rod retracts.

Connection: Power supply M24x1.5

Output to sections M20x1.5
