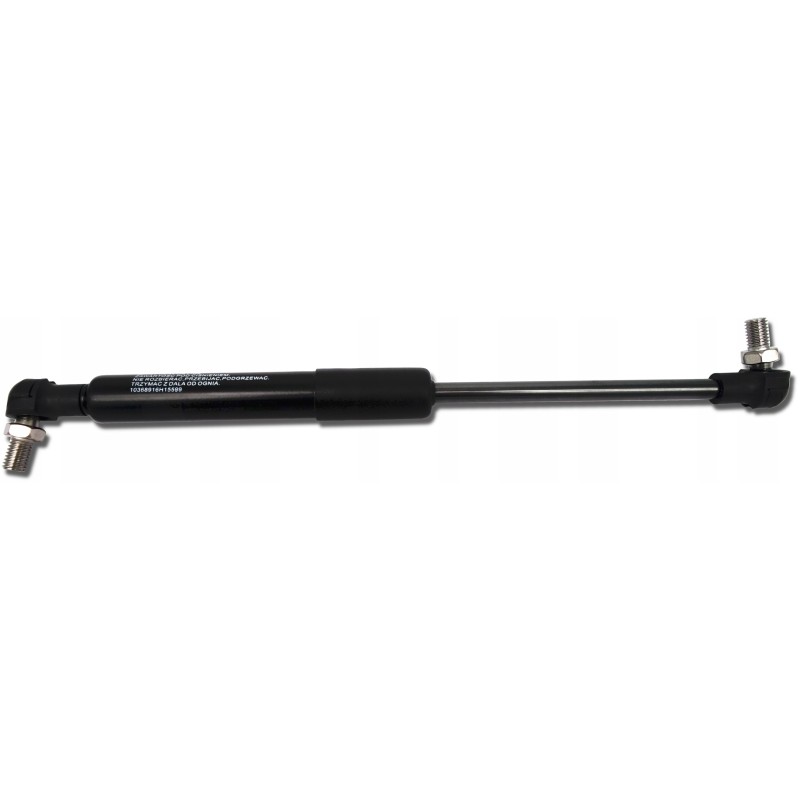

Spring telescope gas actuator 275mm 150n zetor

Gas actuator for doors, rear window and sunroof of ZETOR tractors KOD SKRAW-MET: [3177]_____________________________________________________________________

Used in agriculture and specialized equipment, this model is compatible with ZETOR tractors in models:

Forterra8621 , 8641

Proxima8421, 8441

UR I7711, 7711T, 7745, 7745H, 7745T

UR II8011, 8045, 8111, 8145, 8211, 8245, 9111 , 9145, 9211, 9245

UR III10520, 10540, 7520, 7540, 8520, 8520, 8540

Gas actuators are adapted, depending on the model, to work in: agricultural machines, tractors , sprayers, aurochs, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

Application: doors, rear windows and sunroofs of ZETOR tractors.

Technical specifications: Length of the folded cylinder: 190 mm

Length of the unfolded cylinder: 275 mm

Cylinder stroke: 85 mm

Piston diameter: 8 mm

Cylinder diameter: 18mm

Mounting screws: M8x1.25

Temperature range: -20°C to +70°C

Dimensions (including folded or unfolded actuator) are measured from the center to the center of the hole or mounting thread.

Advantages of gas actuators: No power source.

Transferring high force with relatively small dimensions.

Long service life and guarantee of failure-free operation of the actuator.

Very easy and quick installation.

Wide use and versatility, from agricultural machines to furniture.

Adapted to work at various temperatures.

Telescopes are designed individually for each model. The whole thing is mounted to the factory technological holes of the vehicle, without the need for drilling or other processing.
