Universal relay rl 40 12v 30a

Universal relay RL-40 12V 30A MIZAR number: 69867

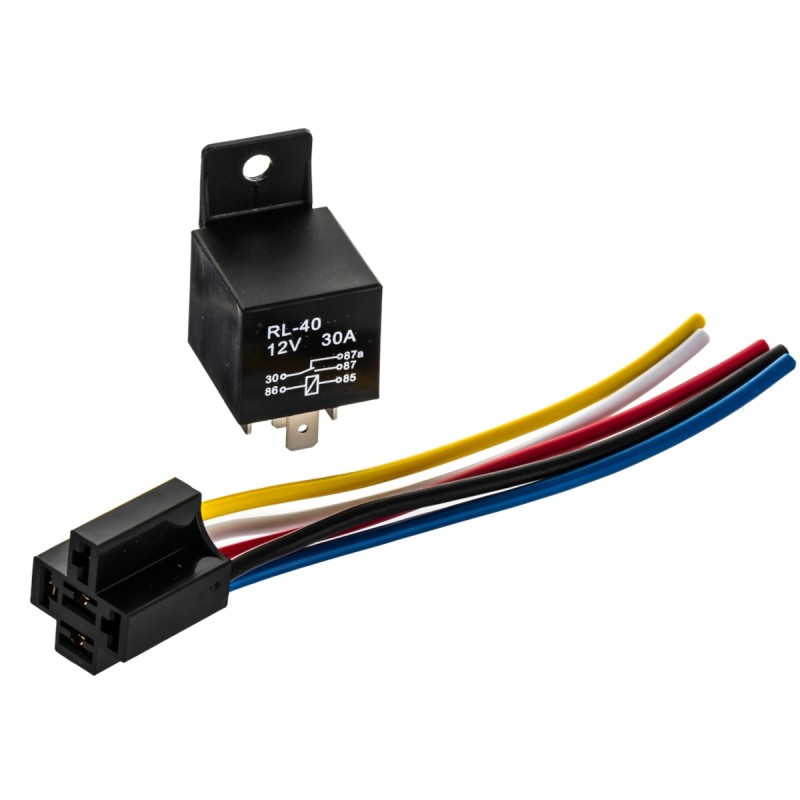

Universal relay RL-40 12V 30A with plug

Make-break relay for a wide range of applications:

Automatic turning on/off low beam, daytime running lights, etc.

Ignition lock (in cooperation with the central locking)

Car alarm

Gas installations

Information technical:

Maximum operating current: 30A

Voltage: 12V

Number of PINs: 5

The socket has 5 pins with wires - each in a different color

Length of wires: 10cm

Thickness of current wires: 2.5mm

Thickness of wires supplying the relay coil: 0.5mm

Instructions for connecting the machine:

PIN no. 30 should be connected to the plus (+) of the ignition

PIN no. 85 should be connected to ground (-)

PIN no. 86 should be connected to the plus (+) of the parking lights

PIN no. 87 is not connected - it is best to insulate

PIN no. 87a should be connected to the plus (+) of the daytime running lights

Comparison numbers: JD1914, RL-40

NOTE The diagrams presented below are for illustration purposes only and may differ when using the relay

MIZAR number: 69867
