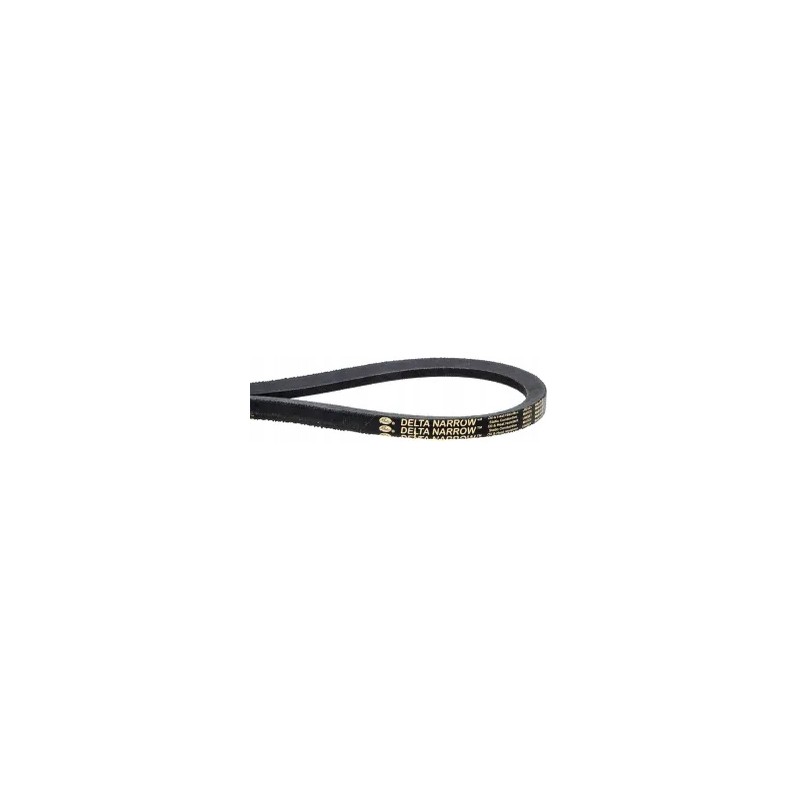

Gates delta spa1357ca V-belt

Gates Delta SPA1357CA V-belt

Unit - Art

Specifications:

Swivel arm

Large power reserve

Application:

Construction machinery

Agricultural machinery

Garden machinery

Properties:

High quality rubber from which the belt is made

Durable polyester fibers protect against tensile forces, material fatigue and sudden loads

Suitable for operation at temperatures from -30°C to +70°C

Antistatic (ISO 1813) and compliant with the REACH regulation and RoHS 2 directive

Technical information:

Internal length = division length - 45 mm

External length = division length + 18 mm

Benefits - Guarantee of good flexibility, stability and smooth operation

Profile - SPA

Base length - 1357 mm

Width - 13 mm

Bottom width - 7.6 mm

Height - 10 mm

Inner length - 1312 mm

External length - 1375 mm

Material - Styrene-butadiene rubber (SBR)

Core material - Polyester

Operating temperature min. - -30 °C

Operating temperature max. - 70 °C

Pulley diameter min. - 90 mm

Number of sections {grooves} - 1

Punched - No

Small length tolerance - No

Serrated - No

For tensioner - No

Oil resistance - Yes

Discharge of electrical charges - No

With additional external layer - Yes
