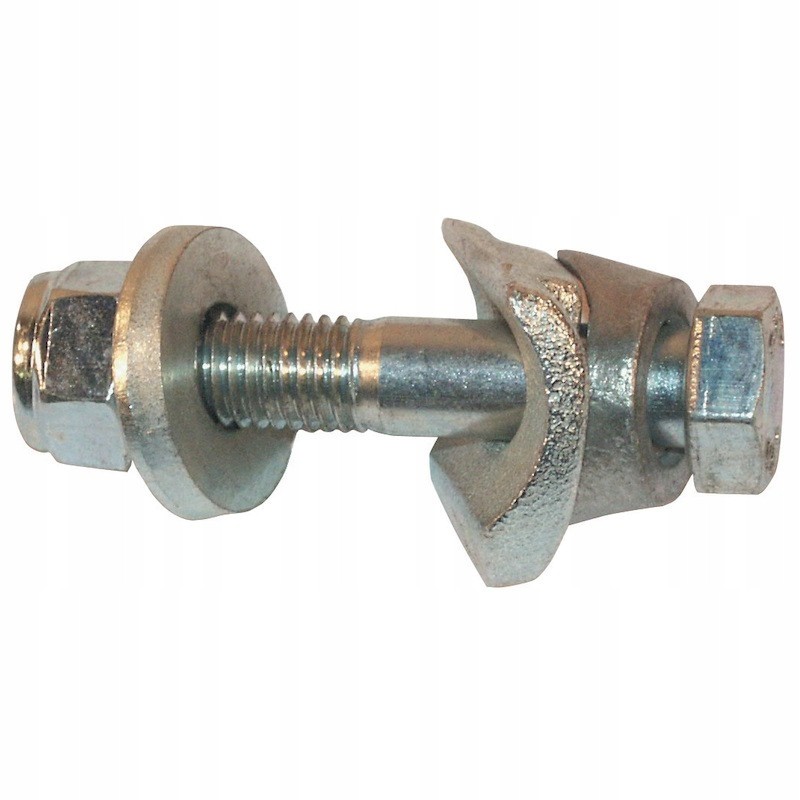

Finger fixation complete deutz

Finger mounting complete Deutz-Fahr Technical data:

* Bolt dimensions: total length - 72 mm, key size - 19, external thread - M12, thread length - 36 mm, hardness class - 8.8

* Bolt washer dimensions: outer diameter - 30 mm, inner diameter - 13 mm, thickness - 6 mm

* Dimensions of the mounting plate: 40.6x34 mm, total thickness - 11.3 mm, hole diameter - 12.7 mm

Washer dimensions: total height - 12.5 mm, internal diameter of the hole - 13 mm, external dimension - 26.3x29.75 mm

* Nut dimensions: Height - 12 mm, internal thread - M12, spanner size - 19

Application:

* Deutz-Fahr carousel tedders and rakes: types of tedders - KH 2 N/4 N/6 N from the year of production. 66, KH 2 / KH 6 until the year of production. 66

Catalog number:

- VF1104211990000KN

- 1.1042.119.900.00

- 1104211990000

Product features:

* Polish product

* Top quality

* Manufacturer Brat-Met

The stun price is for one piece or one running meter (depending on the item in the advertisement). You can buy one piece or one meter of the item even though it is stated in the advertisement that it is packed collectively (we will complete the packaging for you and send as much as you order).
