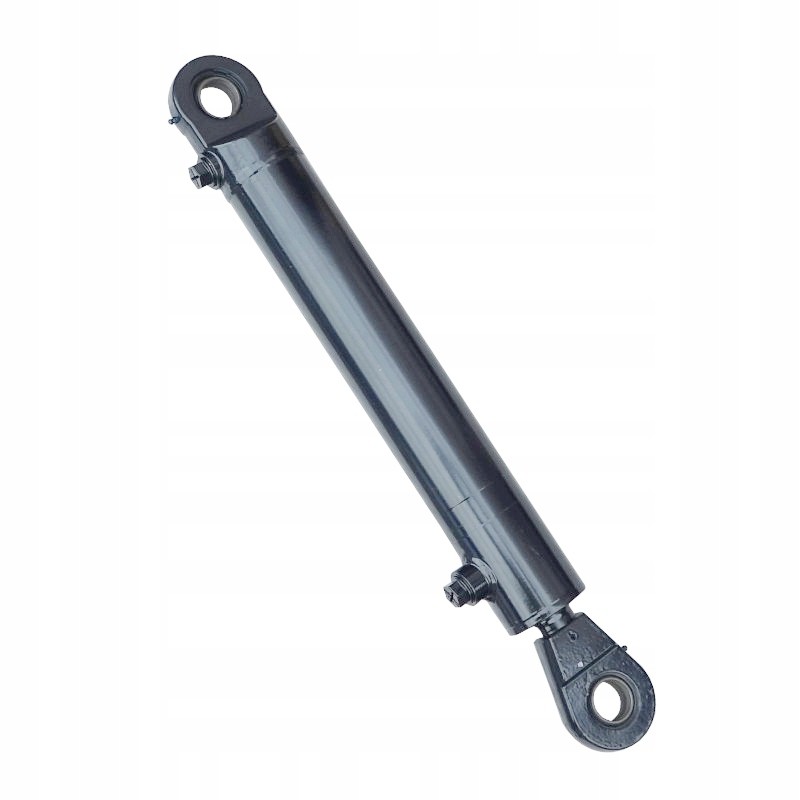

Hydraulic cylinder, double-acting troll cylinder

Double-acting hydraulic actuator (cylinder) Troll ARCHIMEDES Hydraulic actuators ARCHIMEDES

Did you know that when producing Archimedes actuators there is no room for any compromises? The bushings are made by diamond-blasting, the ball joints are forged, and the seals are from the highest quality - Trelleborg. We secure all threads to prevent them from being damaged during transport or storage. And that's not all,

Our actuators are the only ones with two paint coatings - an epoxy primer and a polyurethane surface - this ensures an extremely durable and anti-corrosion coating unmatched in other actuators!

At the end of the production process we test the cylinder under a pressure of 250Mpa and if everything complies with our highest requirements, we give it a serial number, stamp the production date and send it to the fascinating world of hydraulics.

We know almost everything about hydraulics, so we do not hesitate to buy all our products we give

5 years warranty. No worries.

Technical data:

* Length range (between hole axes) - from 743 to 1143 mm

* Piston diameter - 80 mm

* Type - double acting

* Actuator stroke - 400 mm

* Internal diameter of balls - 40 mm

* Input - M27x2

* Piston rod diameter - 45 mm

Application:

* Troll loader

* Tur loader

Catalog number:

- CJ2F-80/45/400A

Comparison numbers:

- CJ2F-80/45/400

Product features:

* Highest quality

* Manufacturer Archimedes

The stun price is for one piece or one running meter (depending on the item in the advertisement). You can buy one piece or one meter of the item even though it is stated in the advertisement that it is packed collectively (we will complete the packaging for you and send as much as you order).
