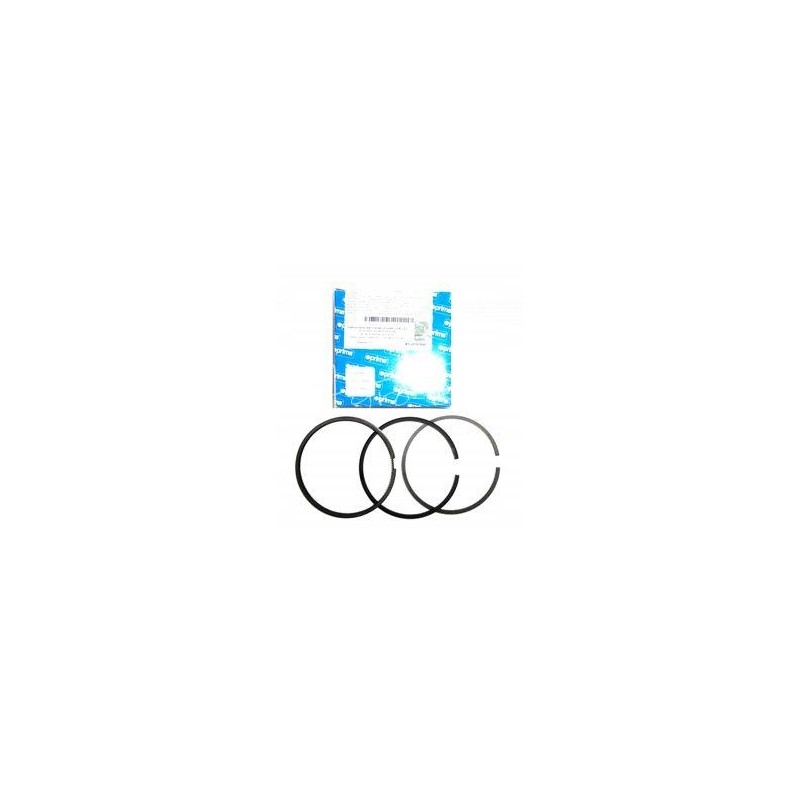

Set of engine rings fi 100 new holland 3 rings

SET OF FI-100 ENGINE RINGS NEW HOLLAND 3 RINGS Set of piston rings Ø 100 mm

Contains 3 rings

- 1 pc. rectangular sealing ring - barrel on the working surface, height 2.5 mm, material: gray ductile cast iron, tempered

- 1 pc. nose-conical scraper ring, height 2.5 mm, material: tempered gray cast iron

- 1 pc. roof oil ring with spring, chrome-plated, height 5.5, material: standard gray cast iron, without heat treatment

Fits:

FIAT model: 616N3,DI15/20/25,DIM15/20/25,FL4C/D,DI30/35,DIM35,TL5Excavator,100EC/NC,110N/NC,OM100,Bus A314,414,416,1000,980

IVECO model: 616N3,35/40/50/55/65, 70/75NC,OM40NC,Orsetto

NEW HOLLAND model: 300/350/355C, Industrial, 355/440/446/450/455/465/466/474/480/500/540 Super, 80.46 Agriful, 80.50 Agriful, 600/605/640/665/670 /680, A80.70 Agriful, DIM30, DIM35

OM model: OM, OM 40, OM 100

Article number: AB. K1-2232
