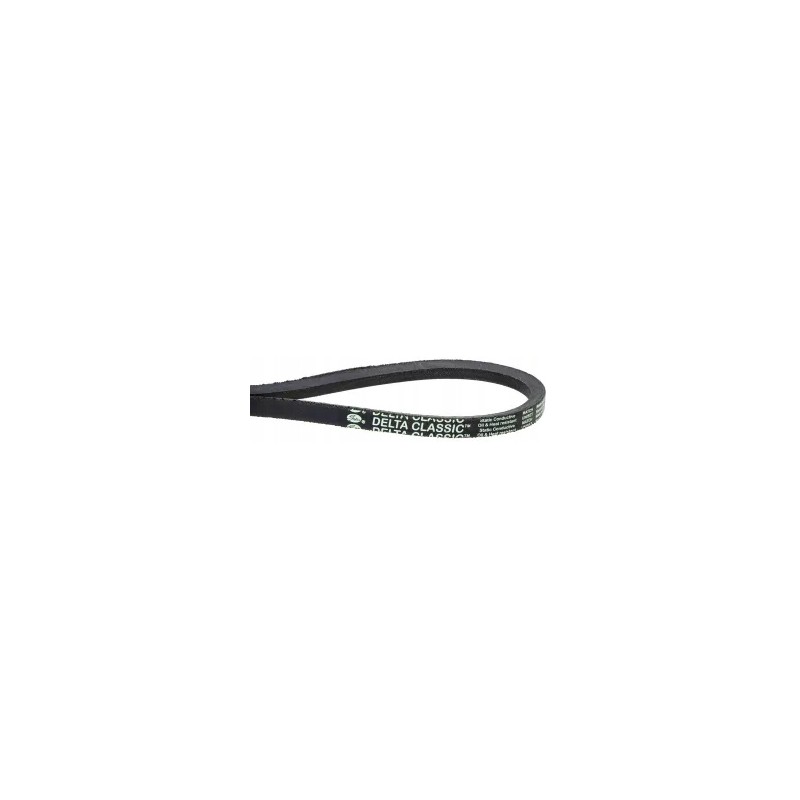

V-belt z10x1578li gates delta z1578ca

Z10x1578Li Gates Delta Z1578CA V-belt

Unit - Piece

Specifications - Flex-Weave® wrap provides good oil resistance, excellent adhesion and protects against abrasion

Application:

Construction machinery

Agricultural machinery

Garden machinery

Properties:

High quality rubber from which the belt is made

Durable polyester fibers protect against tensile forces, material fatigue and sudden loads

Suitable for operation at temperatures from -30°C to +70°C

Suitable for operation at temperatures from -30°C to +70 °C

Technical information:

Division length = internal length + 22 mm

External length = internal length + 38 mm

Benefits - Guarantee of good flexibility, stability and smooth operation

Profile - Z/10

Base length - 1600 mm

Width - 10 mm

Bottom width - 5.9 mm

Height - 6 mm

Internal length. - 1578 mm

External length - 1616 mm

Material - Styrene-butadiene rubber (SBR)

Core material - Polyester

Operating temperature min. - -30 °C

Operating temperature max. - 70 °C

Pulley diameter min. - 45 mm

Number of sections {grooves} - 1

Punched - No

Small length tolerance - No

Serrated - No

For tensioner - No

Oil resistance - Yes

Discharge of electrical charges - No

With additional external layer - Yes
