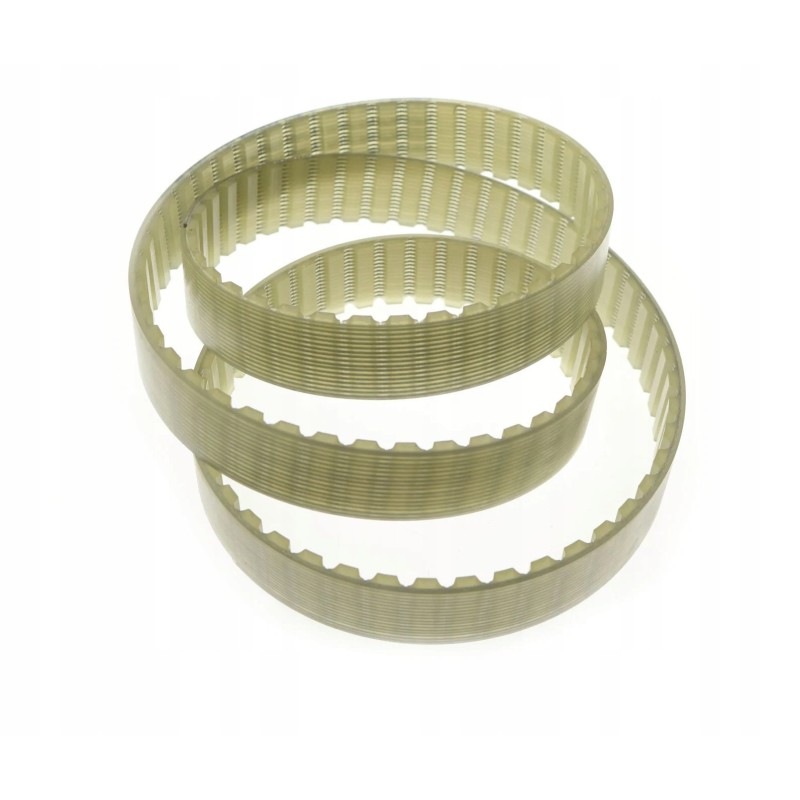

Timed drive belt 10 at10 530 optibelt

POLYURETHANE TOOKING BELT WITH STEEL CORDS 10 AT10 / 530 OPTIBELT Symbol: 120/5849

Model: 10 AT10 / 530

Technical data:

external length (mm): 530

belt width (mm): 10

HS belt height (mm): 5.00

HT tooth height (mm): 2.50

tooth spacing T (mm): 10.00

photos are for illustration purposes only.

belt width tolerance: +/- 1 mm

Advantages of Optibelt polyurethane timing belts:

The optibelt ALPHA TORQUE belt is equipped with wear-resistant polyurethane with a hardness of 86 Shore A. The good oil resistance typical of polyurethane is its basic feature, as is a certain resistance to acids and alkaline solutions.

The belt can be equipped with tension carriers such as steel, highly flexible steel, stainless steel, aramid, polyester and vectran - according to different areas of application.

Optibelt is a leading global manufacturer of drive belts for all types of industrial machinery and equipment, it also supplies wheels belt.

Optibelt products are used wherever durability and uncompromising quality are important: in machine construction, the automotive industry, the agricultural technology sector and in the household appliances industry.

We have been an importer of OPTIBELT belts and pulleys for over 10 years and we guarantee the best quality of products.120/5849
