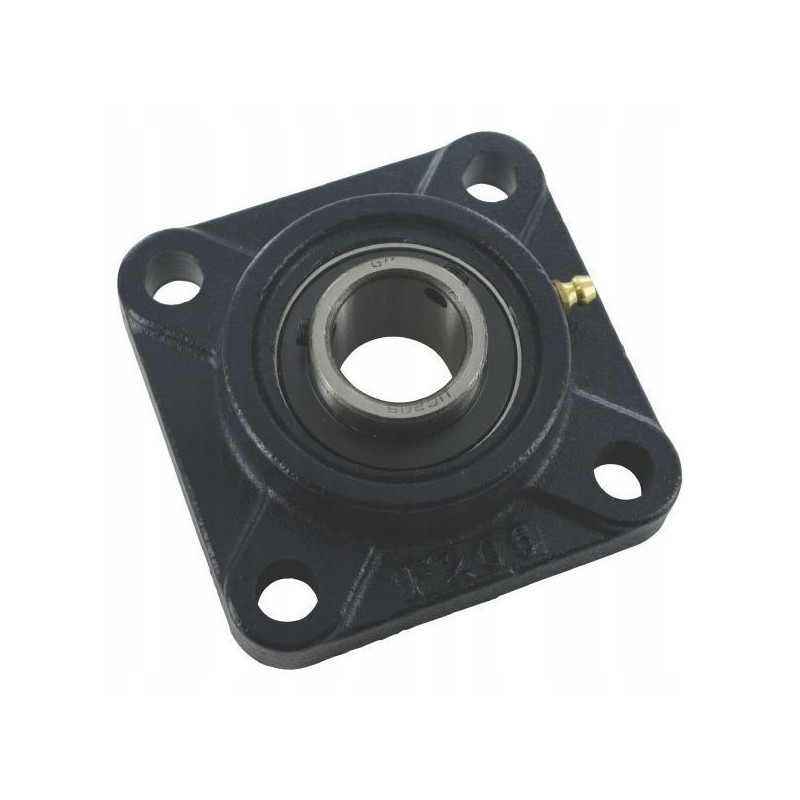

Ucf210gp bearing with square housing, complete

Bearing with square housing, complete INDEX: UCF210GP

Part number: UCF210GP

Unit: piece

Technical information: - Note: color may differ from the image

Features: - The inner bearing has an inner ring extended on both sides with 2 adjustment screws

Total height: 54.6 mm

Diameter of mounting holes: 16mm

Housing type: Square flange

d Inner bearing diameter: 50 mm

a Total length: 143 mm

l Housing height: 40 mm

Bi Bearing inner ring width: 51.6 mm

Position of the bearing balls relative to the end of the shaft/shaft: 22 mm

e Spacing mounting holes: 111mm
