Pglo816 tip dn08 m16x1 5 10l

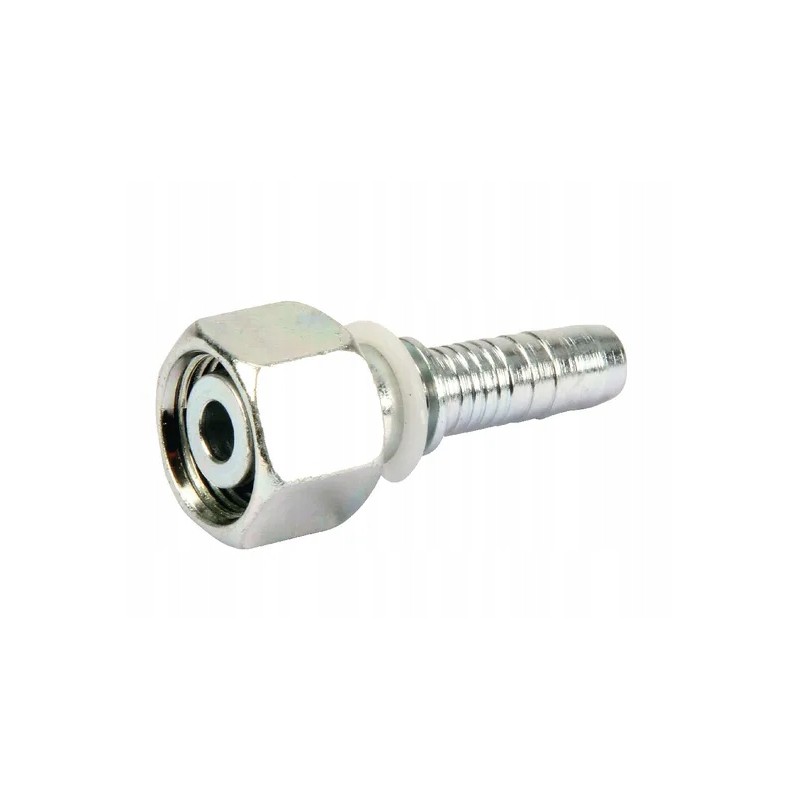

PGLO816 Tip DN08-M16x1.5-10LEAN

8716106441167

Cone angle

24 °

Shape

Straight - 2 sides of connection

Connector type no. 1

Conical

Connector type no. 1 - male/female

Female

Length of connector no. 1

25.4 mm

Thread diameter of connector no. 1

M16

Thread pitch of connector no. 1

1.50 mm

Wrench size for connector no. 1

19.0 mm

Connector no. 2 type

Hose connector

Connection type no. 2 - male/female

Male

Connection no. 2 diameter

5/16 inch

Connection diameter no. 2

8 mm

Material

Steel

Surface treatment

Galvanized

White passivated

Series

10L

Connection

Metric union nut with 24° cone and O-ring

Application

Threaded connections with cutting ring, light version with metric union nuts
