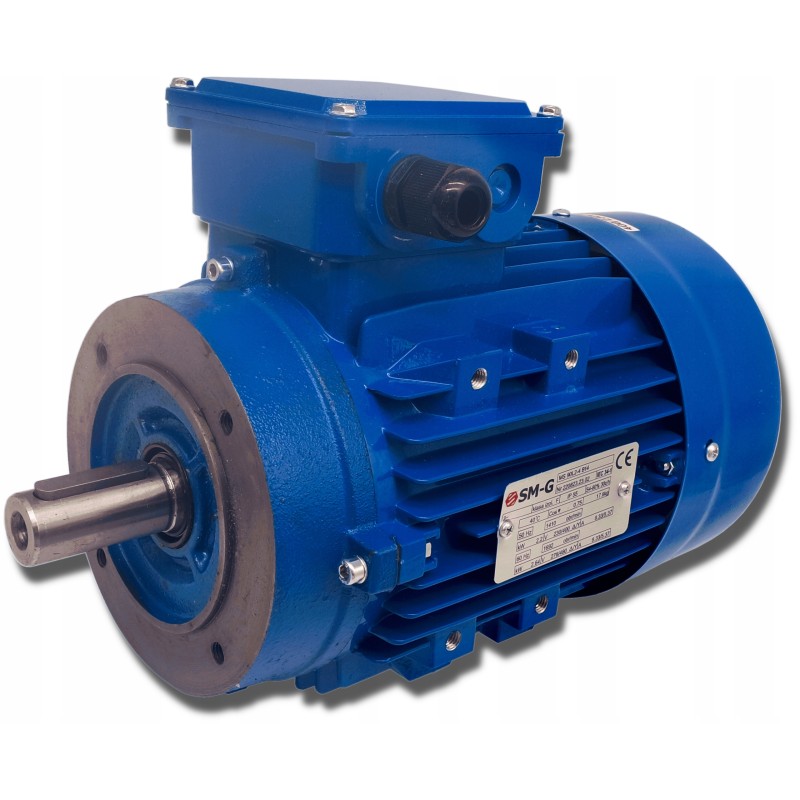

Electric motor 2 2kw 230 400v 1400rpm 3-phase

Electric motor - three-phase 230/400V 2.2kW SKRAW MET CODE: [3403] Manufacturer: SM-G (SKRAW MET GROUP) Symbol: B14 MS 90L 2-4______________________ Mounting type: flanged Shaft: Φ24 mm Number of revolutions per minute (rpm): 1400 Direction revolutions: ↻ right or left ↺Very good quality three-phase induction motor - parameters significantly exceed the cheapest Chinese products on the market.

Excellent heat dissipation ensures continuous operation under load.

Guarantees long-term and failure-free operation work!

Application: General purpose engine - widely used in hydraulic and mechanical systems.

Designed to drive hydraulic pumps, but also other mechanical elements of systems that require power and rotational movement.

Used in agriculture, horticulture, forestry, construction and broadly understood industry.

Technical specifications: - Frequency: 50 Hz

- Output power : 2.2 kW V Δ

- Voltage (±5%):

230 V Δ

400 V Y

- Speed rotation: 1400 rpm

- Rated torque: 14.9 Nm

- Rated current:

9.33 A Δ

5.37 A Y

- Drive shaft diameter: 24 mm

- Cable glands: M20x1.5

- Permissible radial load: 829 N

- Permissible axial load: 669 N

- Noise level: 63 dB

- Permissible ambient temperature: from -20°C to +40°C

- Mounting type: B14

Additional information:

Rotation direction: ↻ right or left ↺

Key on the shaft: yes

Mounting lugs: no

Protection level: IP55

Housing material: aluminum

Winding: copper

Motor color may be varies depending on current delivery.

Technical parameters may vary slightly, depending on current delivery. This does not affect the general operation and use of the engine. Each engine is accompanied by a catalog card with information on operation, first assembly and changing the direction of rotation. On our other auctions you will also find foot-and-flange engines (B35), flange-type (B14), foot-mounted (B3) with different sizes and properties.
