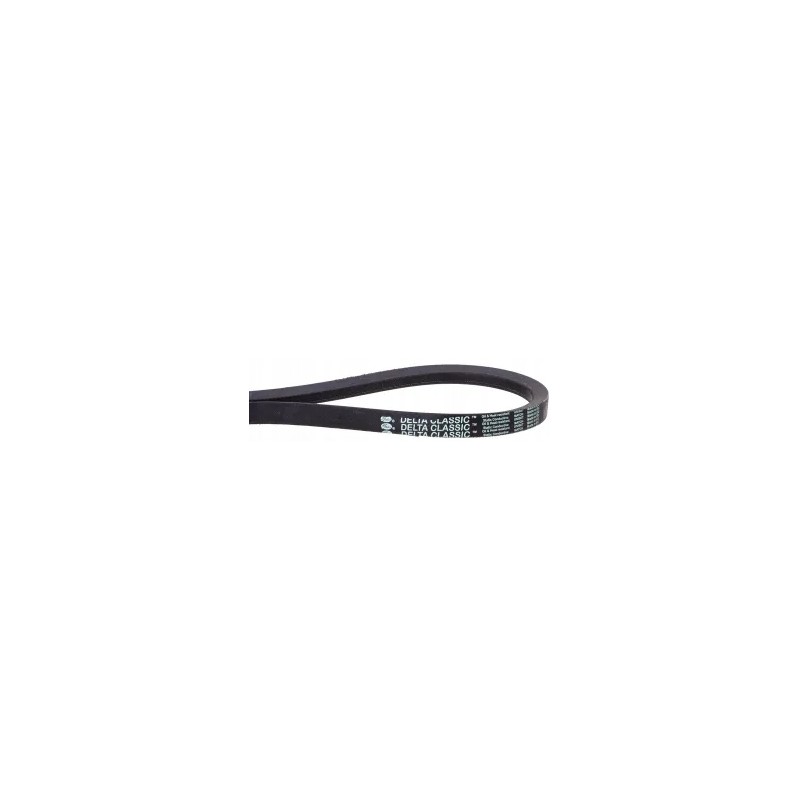

V-belt c51 22x1292li gates delta c1292ca

V-belt C51 22x1292Li Gates Delta C1292CA

Unit - Piece

Specifications - Flex-Weave® wrap provides good oil resistance, excellent adhesion and protects against abrasion

Application:

Construction machinery

Agricultural machinery

Garden machinery

Features:

High quality rubber from which the belt is made

Durable polyester fibers protect against tensile forces, material fatigue and sudden loads

Suitable for operation at temperatures from -30°C to +70°C

Antistatic (ISO 1813) and compliant with the REACH regulation and directive RoHS 2

Technical information:

Division length = internal length + 58 mm

External length = internal length + 88 mm

Benefits - Guarantee of good flexibility, stability and smooth operation

Profile - C/22

Base length - 1350 mm

Width - 22 mm

Bottom width - 12.3 mm

Height - 14 mm

Internal length. - 1292 mm

External length - 1380 mm

Material - Styrene-butadiene rubber (SBR)

Core material - Polyester

Operating temperature min. - -30 °C

Operating temperature max. - 70 °C

Pulley diameter min. - 229 mm

Number of sections {grooves} - 1

Punched - No

Small length tolerance - No

Serrated - No

For tensioner - No

Oil resistance - Yes

Discharge of electrical charges - No

With additional external layer - Yes
