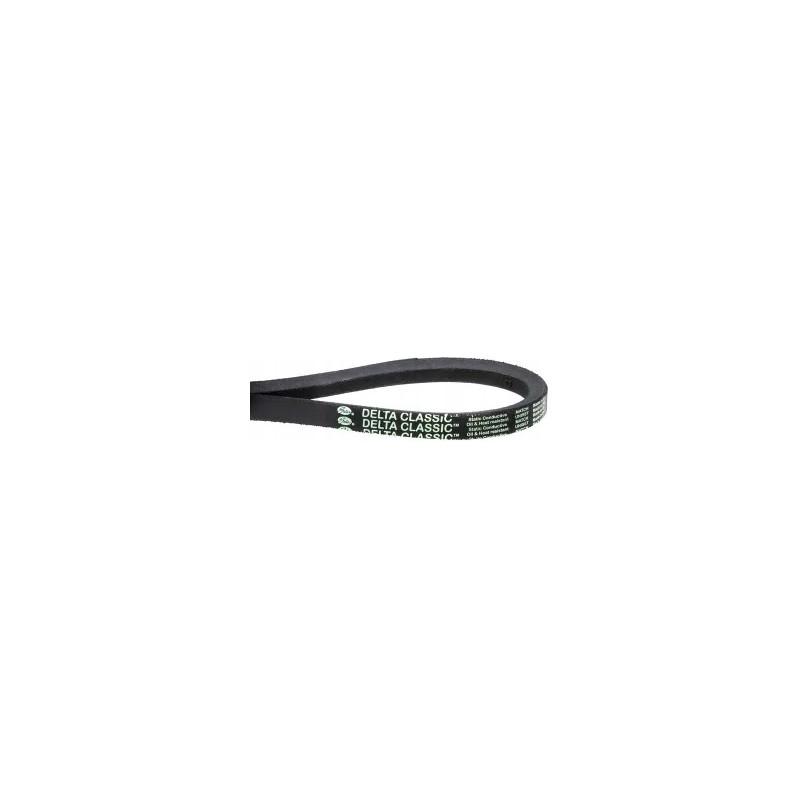

V-belt a13x1580li 1610ld gates delta a1580ca

V-belt A13x1580Li, 1610Ld Gates Delta A1580CA

Unit - Piece

Specifications - Flex-Weave® wrap provides good oil resistance, excellent adhesion and protects against abrasion

Application:

Construction machinery

Agricultural machinery

Garden machinery

Properties:

High quality of the rubber from which the belt is made

Durable polyester fibers protect against tensile forces, material fatigue and sudden loads

Suitable for operation at temperatures from -30°C to +70°C

Antistatic (ISO 1813) and compliant with the REACH regulation RoHS 2 directive

Technical information:

Division length = internal length + 30 mm

External length = internal length + 50 mm

Benefits - Guarantee of good flexibility, stability and smooth operation

Profile - A/13

Base length - 1610 mm

Width - 13 mm

Bottom width - 9.6 mm

Height - 8 mm

Internal length. - 1580 mm

External length - 1630 mm

Material - Styrene-butadiene rubber (SBR)

Core material - Polyester

Operating temperature min. - -30 °C

Operating temperature max. - 70 °C

Pulley diameter min. - 80 mm

Number of sections {grooves} - 1

Punched - No

Small length tolerance - No

Serrated - No

For tensioner - Yes

Oil resistance - Yes

Discharge of electrical charges - No

With additional external layer - Yes
