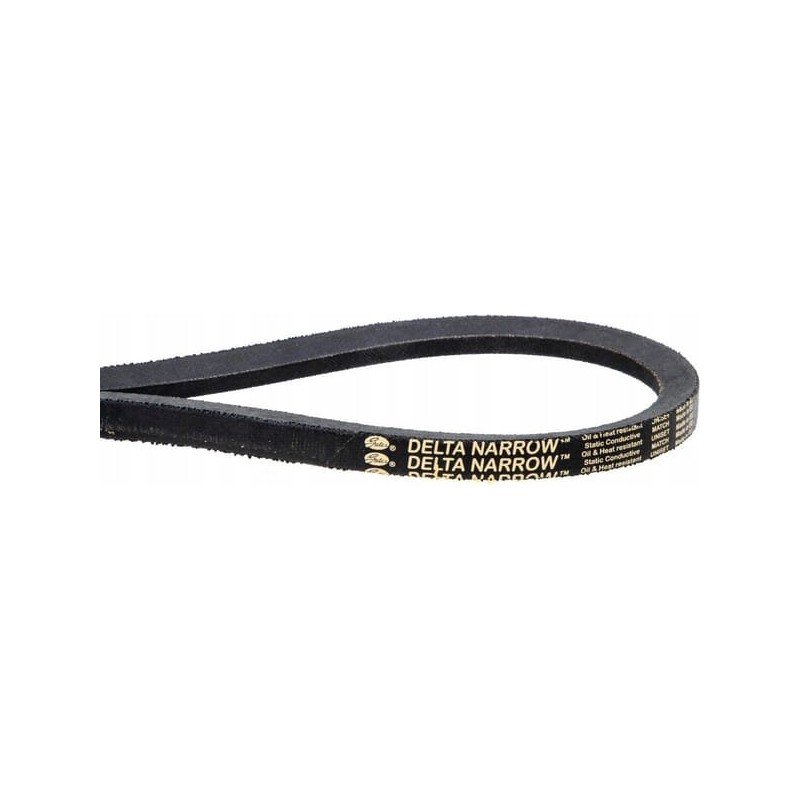

spa 1272 spa1272ca gates delta V-belt

SPA 1272 V-belt Parameters

Part number: SPA1272CA

Unit: Piece

Manufacturer: Gates Delta

EAN: 5414465310775

Profile: SPA

Base length: 1272 mm

Width: 13 mm

Bottom width: 7.6 mm

Height: 10 mm

Internal length: 1227 mm

External length: 1290 mm

Material: Styrene-butadiene rubber (SBR)

Core material: Polyester

Operating temperature min.: -30 °C

Operating temperature max.: 70 °C

Pulley diameter min.: 90 mm

Number of sections {grooves}: 1

Punched: No

Small length tolerance: No

Serrated: No

For tensioner: No

Oil resistance: Yes

Discharge of electrical charges: No

With additional outer layer: Yes

Quantity in package: 1 pc.

Specifications

- Swivel arm

- Large reserve of power Application

- Construction machinery

- Agricultural machinery

- Garden machinery

Properties

- High quality rubber from which the strap is made - Durable polyester fibers protect against tensile forces, material fatigue and sudden loads - Suitable for operation at temperatures from -30°C to +70°C - Antistatic (ISO 1813) and compliant with the REACH regulation and the RoHS 2 directive

Technical information

- Internal length = division length - 45 mm

- External length = division length + 18 mm

Benefits

- Guarantee of good flexibility, stability and smooth operation
