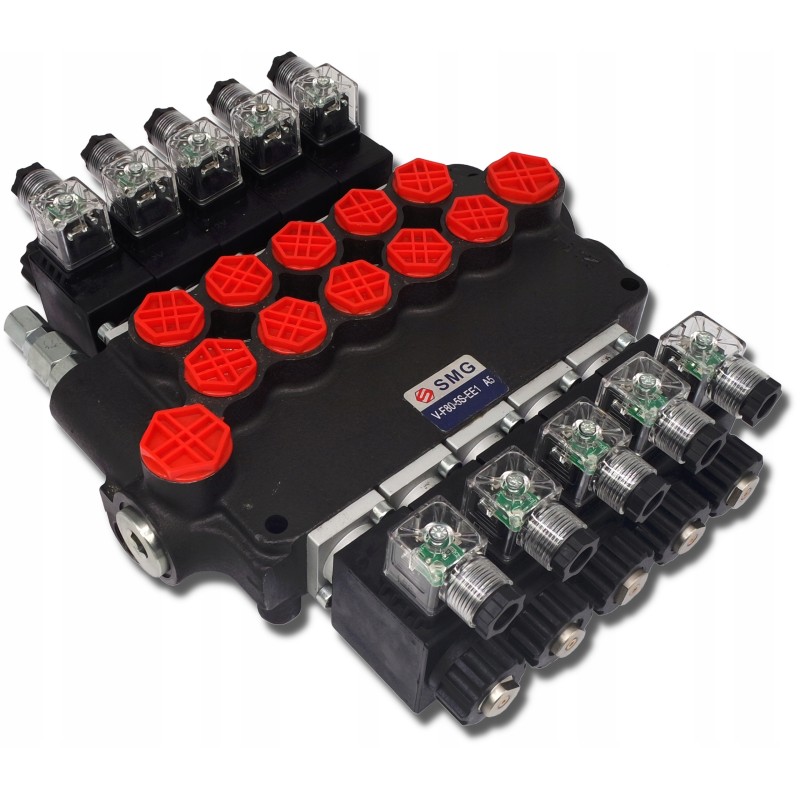

Hydraulic electric distributor 5 sec 80l 24v

5-section electric hydraulic distributor 24V with an oil flow of 80L/min SKRAW MET CODE: [3265] Manufacturer: SM-G (SKRAW MET GROUP) Universal distributor, used in various types of machines such as: Cyclops, Tury, Loaders, Plows, Forklifts and derivatives.

The distributor is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.

It is adapted to work in: agricultural machines, tractors, sprayers, rounds, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

Electrical coils with plugs are included with the distributor.Distributor has a safety valve.nominal voltage: 24V

oil flow: 0 - 80 l/min

recommended oil filtration level: 10 - 15 µ

oil temperature : from -20°C to +80°C

ambient temperature: from -40°C to +60°C

version: cast steel valve

Pressure range: Maximum supply pressure: 250Bar

Maximum return pressure: 50Bar

Maximum pressure on sections: 300Bar

Overflow valve: Factory set to 180Bar

Possibility of self-adjustment, full turn change by 30Bar.

Connection: Power supply (P) BSP 3/4''

Return (T) BSP 3 /4''

Output to 1/2'' BSP sections

Oil type: Mineral oil-based hydraulic oil

Control Three-position slider (1 - 0 - 2) it returns to the neutral position on the spring (after cutting off the power supply)

Position 0 neutral (power supply to the coils CUT OFF) the actuator piston rod is standing - the oil goes to the overflow.

Position 1 working position (power supply to the first coil), the actuator piston rod extends.

Working position 2 (power supply to the second coil), the actuator piston rod retracts.

Inputs/outputs: P1 / P2 - oil supplyT1 / T2 - oil returnA1-A2 / B1-B2 - outputs to actuatorsN - pressure output (for transmitting pressure to distributors connected in series - requires a pressure sleeve) Illustrative photo! The number of outputs for the actuator (A and B) depends on the number of sections in the distributor.

Electrical plugs are connected to the distributor coils using three pins. All additional elements, i.e. coil plugs, joysticks or control panels, can be purchased at our other auctions. Technical drawing and diagram of the distributor
