Mounting flange for hydraulic motors gr2 gr3
  • Mounting flange for hydraulic motors gr2 gr3
  • Mounting flange for hydraulic motors gr2 gr3
  • Mounting flange for hydraulic motors gr2 gr3

Mounting flange for hydraulic motors gr2 gr3

15010191724384
Other (SM)
£45.11
Quantity
5 Items

Description

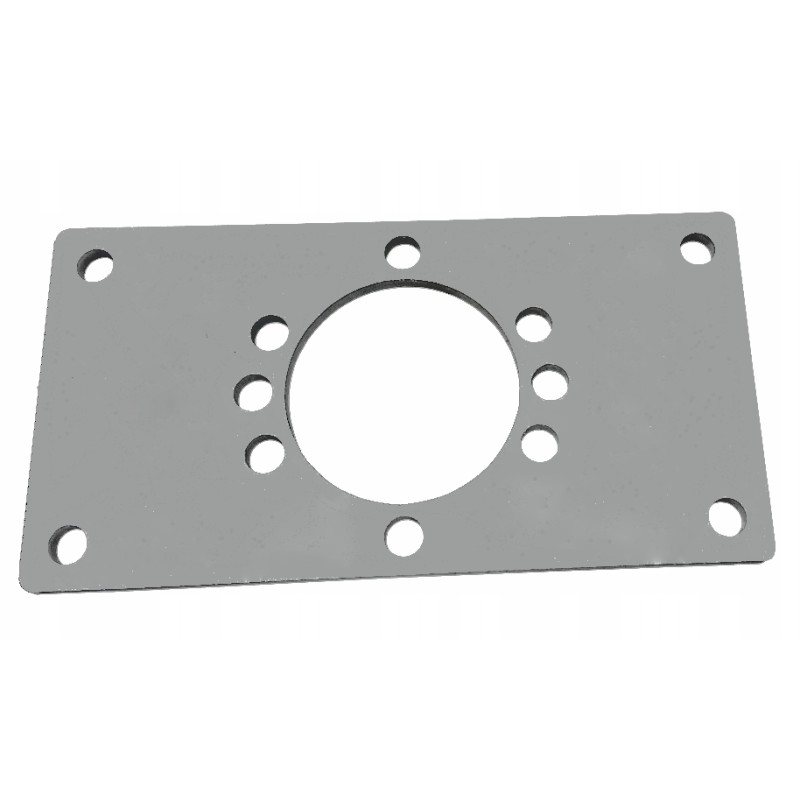

MOUNTING COLLAR FOR BMR SMR OMP ALSG2 GR2 GR3 ENGINE SKRAW-MET CODE: [1339] Flange used to mount hydraulic motor of group 2 (GR2) and group 3 (GR3). It can be used in agriculture, horticulture, forestry, construction and broadly understood industry .

Technical specifications: dimensions: 250mm x 130mm

diameter of the hole for the centering flange: 83mm

spacing of mounting holes on the engine: 104.6mm

diameter of holes for screwing to the engine: 13.5mm (8x)

diameter of mounting holes: 13mm (4x) )

thickness: 8mm

material: weldable steel ENGINES AND MANY OTHER COMPONENTS AVAILABLE IN OUR OTHER AUCTIONS

Product Details
Other (SM)
15010191724384
1339.250x130FSD3
5 Items
New

Data sheet

Manufacturer
Other (SM)
Part Number
1339.250x130FSD3
