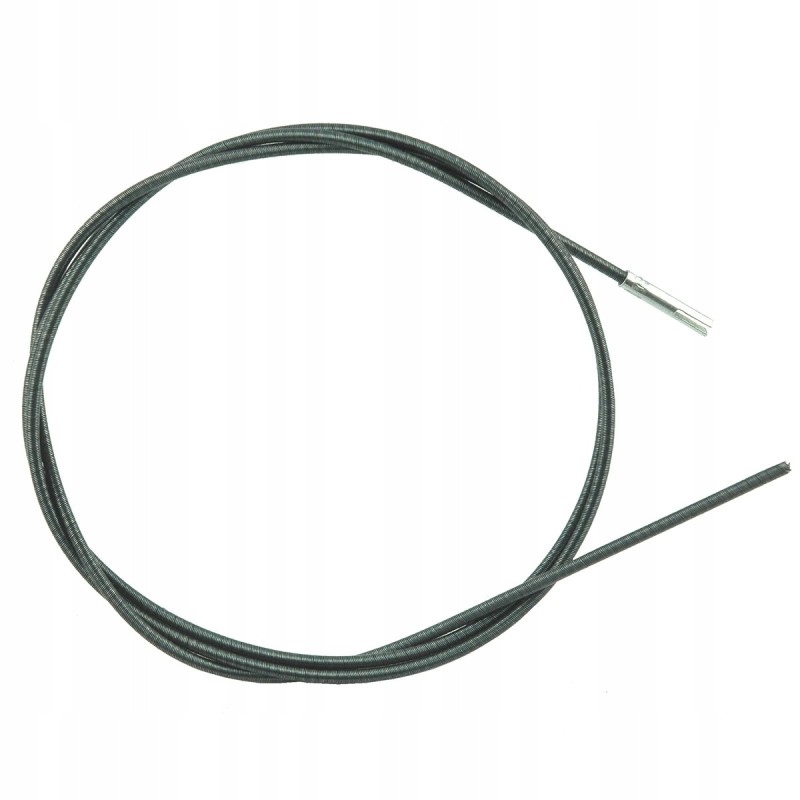

Meter cable without armor 1500 mm Yanmar

Traktor_com_pl offers: Meter cable without armor 1500 mm / Yanmar4FARMER

Counter cable without armor, total length 1500 mm, with a 'cut' end for Japanese Yanmar tractors and others.

The tachometer cable is intended to indicate the current value of engine speed, tractor speed and engine hour counter. This is possible thanks to the counter cable, which connects the special mini gearbox with the counter on the tractor's dashboard. A flexible rotating cable placed in the casing transmits rotation to the counter magnet, which also rotates. The rotating magnet creates a magnetic field that rotates the drum with an attached pointer indicating the current rotational speed and the number of operating hours.

Condition: New

Production: Replacement

Parts: Body

Cable length (mm): 1500

Cable diameter (mm): 3.00

Dimensions:

length: 1500 mm,

diameter: 3.00 mm,

tip diameter: 4.50 mm.

The counter cable rotates in the armor at a relatively low speed and therefore the speed indications may not be precise with an error tolerance of +/- 20 km/h. The counter cable, like any other tractor element, should be kept in good condition and properly lubricated and maintained. The first sign of cable damage is the lack of reaction and vibration of the pointer while the engine is running.
