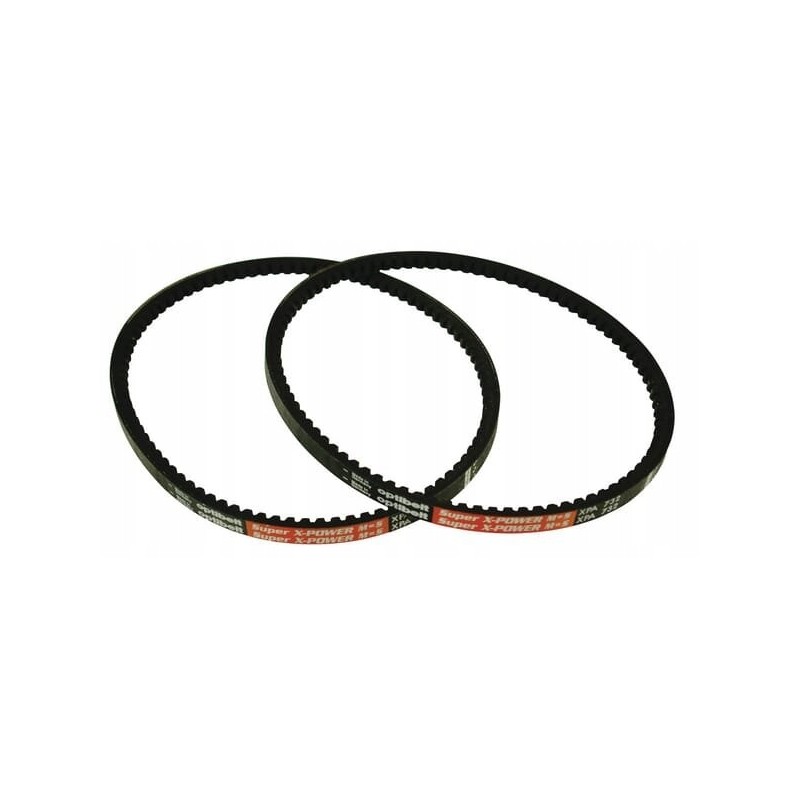

Toothed V-belt xpa 667mm xpa667 optibelt

XPA toothed V-belt, 667 mm Parameters

Part number: XPA667

Unit: piece

Manufacturer: Optibelt

Profile: XPA

Base length: 667 mm

Width: 12.7 mm

Bottom width: 5.8 mm

Height: 10 mm

Internal length: 622 mm

Outer length: 685 mm

Working temperature min.: -30 °C

Working temperature max.: 90 °C

Pulley diameter min.: 71 mm

Small length tolerance: Yes

Serrated: Yes

Note: All narrow belts wedges of the Optibelt Super TX M=S (Matched Sets) version with the same nominal length can be combined into sets without the need to measure.

Specifications

- Swivel arm

- Large reserve of power Benefits

- Requires little maintenance.

- Long service life.

Application

- Machine construction

- Machine tools

Properties

- Precise, quiet operation - Oil and high temperature resistant - V-belts can be used as a set Technical information

- Internal length = division length - 45 mm

- External length = division length + 18 mm
