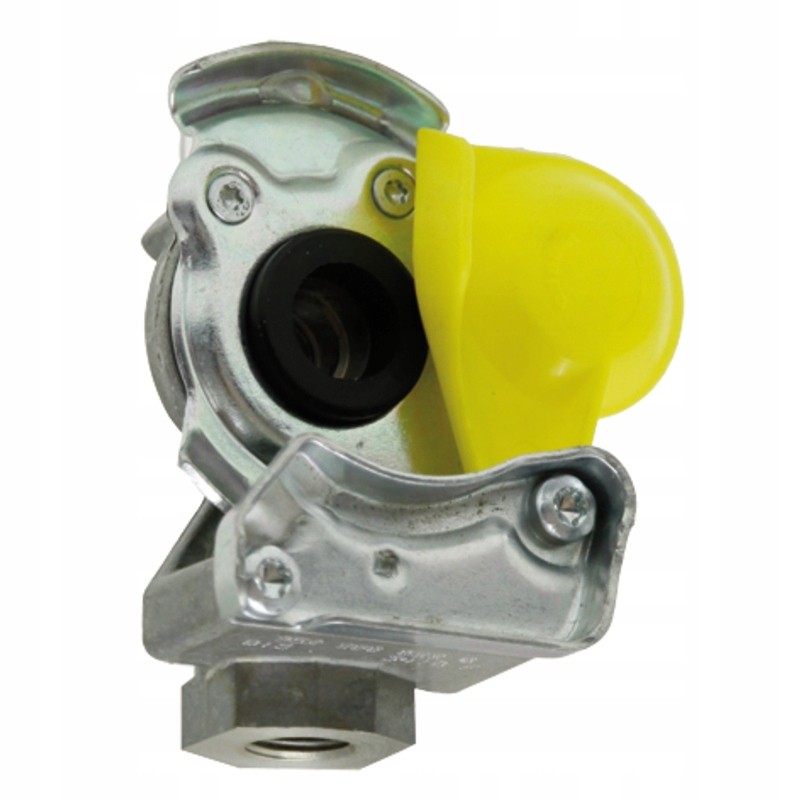

Wabco 10bar coupling head

Coupling head 10bar WABCO QUALITY PROVIDED BY GRANITE PARTS GERMANY

Brand: WABCO

Article number: 8289522000220

Reference number: 9522000220

Technical parameters:

M16 x 1.5 yellow cover

Versions for semi-trailers can be attached to a suitable console with a 27x27mm square hole (anti-twist). The thickness of the console sheet must be at least 2 mm. The tightening torque of the M24 x 1.5 mounting nut is 45 +/- 5 Nm. Screws with O-ring seal should be tightened to 30 +/- 2 Nm.

Maintenance must be carried out in accordance with vehicle inspection regulations and manufacturer's recommendations. After unscrewing the hose, the connector filter without a cover can be cleaned by blowing it with compressed air.

Tip: after disconnecting the vehicle, the plastic cover (red or yellow) should be screwed onto the opening of the pneumatic connector to prevent dirt from entering.

connection thread: M16 x 1.5

Working pressure max. (bar): 10

Version: yellow, brake cable
