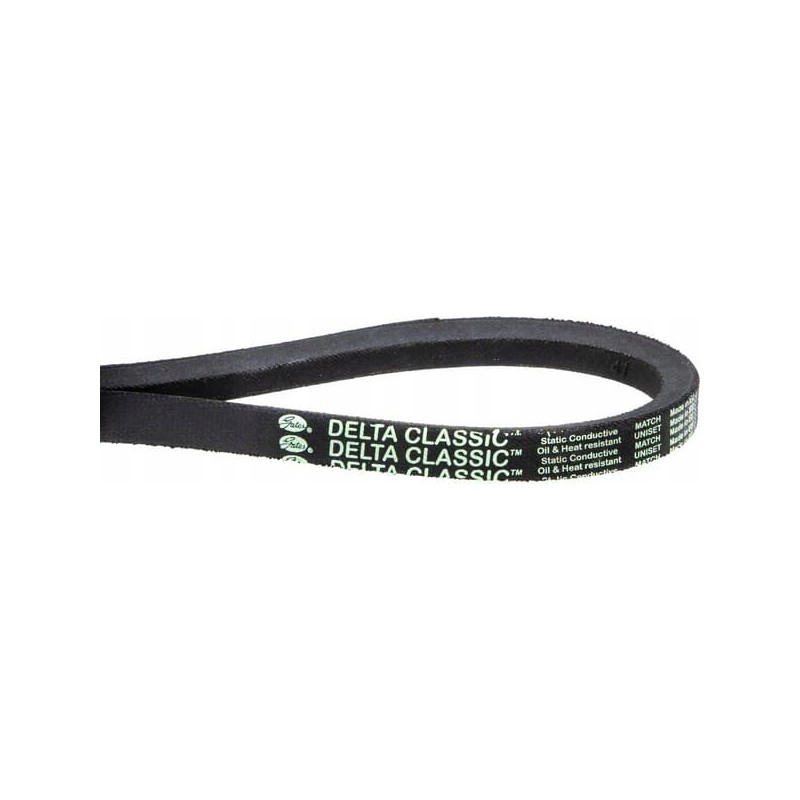

V-belt a13x2620li 2650ld a2620ca gates delta

V-belt A13x2620Li, 2650Ld Parameters

Part number: A2620CA

Unit: Piece

Manufacturer: Gates Delta

EAN: 5414465319662

Profile: A/13

Base length: 2650 mm

Width: 13 mm

Bottom width: 9.6 mm

Height: 8 mm

Internal length .: 2620 mm

External length: 2670 mm

Material: Styrene-butadiene rubber (SBR)

Core material: Polyester

Operating temperature min.: -30 °C

Operating temperature max.: 70 °C

Pulley diameter min. .: 80 mm

Number of sections {grooves}: 1

Punched: No

Small length tolerance: No

Serrated: No

For tensioner: Yes

Oil resistance: Yes

Discharge of electrical charges: No

With additional outer layer: No

Quantity in package: 1 pc.

Specifications

- Flex-Weave® wrap provides good oil resistance, excellent grip and protects against abrasion

Application

- Construction machinery

- Agricultural machinery

- Garden machinery

Properties

- High quality rubber from which the strap is made - Durable polyester fibers protect against tensile forces, material fatigue and sudden loads - Suitable for operation at temperatures from -30°C to +70°C - Antistatic (ISO 1813) and compliant with the REACH regulation and the RoHS 2 directive

Technical information

- Split length = internal length + 30 mm

- External length = internal length + 50 mm

Benefits

- Guarantee of good flexibility, stability and smooth operation
