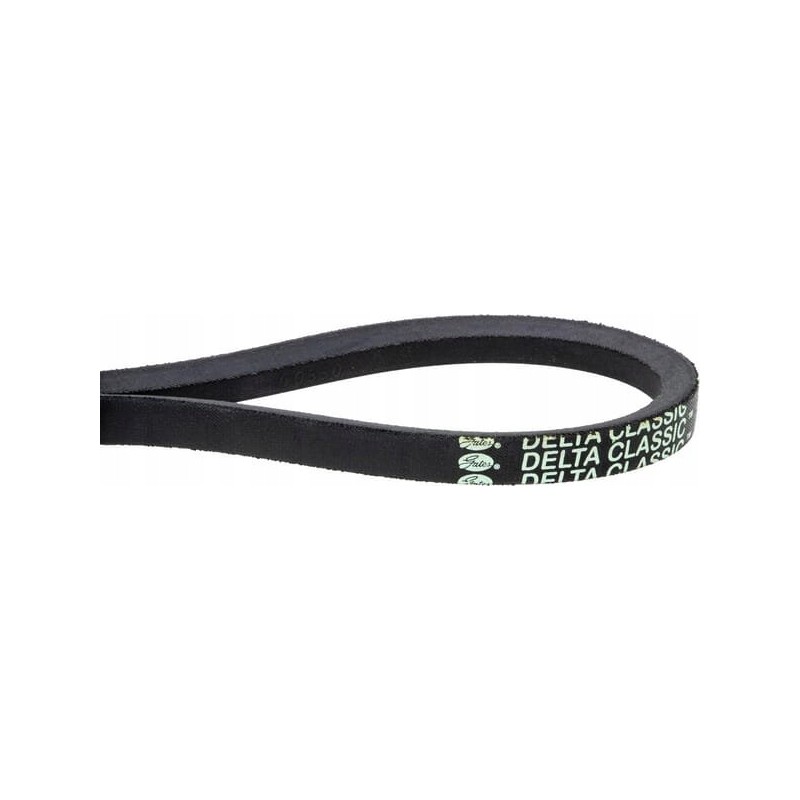

V-belt b17x2410li 2450ld b2410ca gates delta

V-belt B17x2410Li, 2450Ld Parameters

Part number: B2410CA

Unit: Piece

Manufacturer: Gates Delta

EAN: 5414465297854

Profile: B/17

Base length: 2450 mm

Width: 17 mm

Bottom width: 10.2 mm

Height: 11 mm

Internal length .: 2410 mm

External length: 2480 mm

Material: Styrene-butadiene rubber (SBR)

Core material: Polyester

Operating temperature min.: -30 °C

Operating temperature max.: 70 °C

Pulley diameter min. .: 125 mm

Number of sections {grooves}: 1

Punched: No

Small length tolerance: No

Serrated: No

For tensioner: No

Oil resistance: Yes

Discharge of electrical charges: No

With additional outer layer: Yes

Quantity in package: 1 pc.

Specifications

- Flex-Weave® wrap provides good oil resistance, excellent grip and protects against abrasion

Application

- Construction machinery

- Agricultural machinery

- Garden machinery

Properties

- High quality rubber from which the strap is made - Durable polyester fibers protect against tensile forces, material fatigue and sudden loads - Suitable for operation at temperatures from -30°C to +70°C - Antistatic (ISO 1813) and compliant with the REACH regulation and the RoHS 2 directive

Technical information

- Split length = internal length + 40 mm

- External length = internal length + 69 mm

Benefits

- Guarantee of good flexibility, stability and smooth operation
