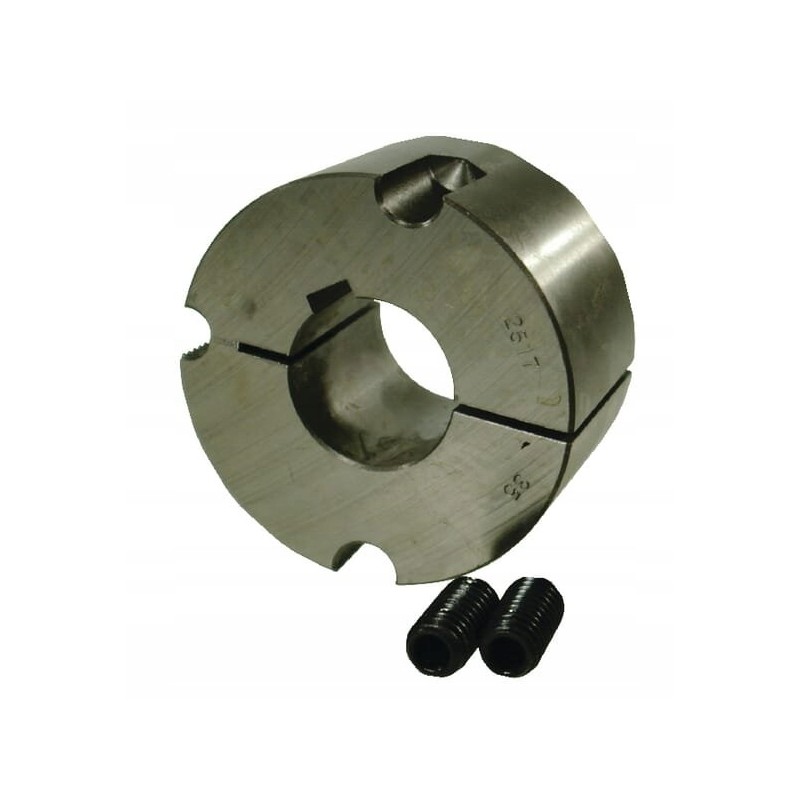

Bushing with conical shank 14mm 110814tlkr optibel

Bushing with conical shank 14 mm Parameters

Part number: 110814TLKR

Unit: piece

Manufacturer: Optibelt

EAN: 8716106095568

Inner diameter [d]: 14 mm

Outer diameter [Dmax]: 38 mm

Total length [L]: 22.3 mm

Groove width: 5 mm

Screw tightening torque: 5.6 N m

Operating torque max.: 147nm

Benefits

- Quick and easy assembly and disassembly - Connection of the shaft to the hub is possible by pressing and forming It consists of

- Taperlock sleeve

- 2 Allen adjustment screws (art. no. 1108INB14)

Technical information

Bushing type 1108 + bore 20 mm = article no. 1108-20TL

Groove according to DIN 6885-1

Bolt thread diameter

- 1/4 inch

- 1/2 inch
