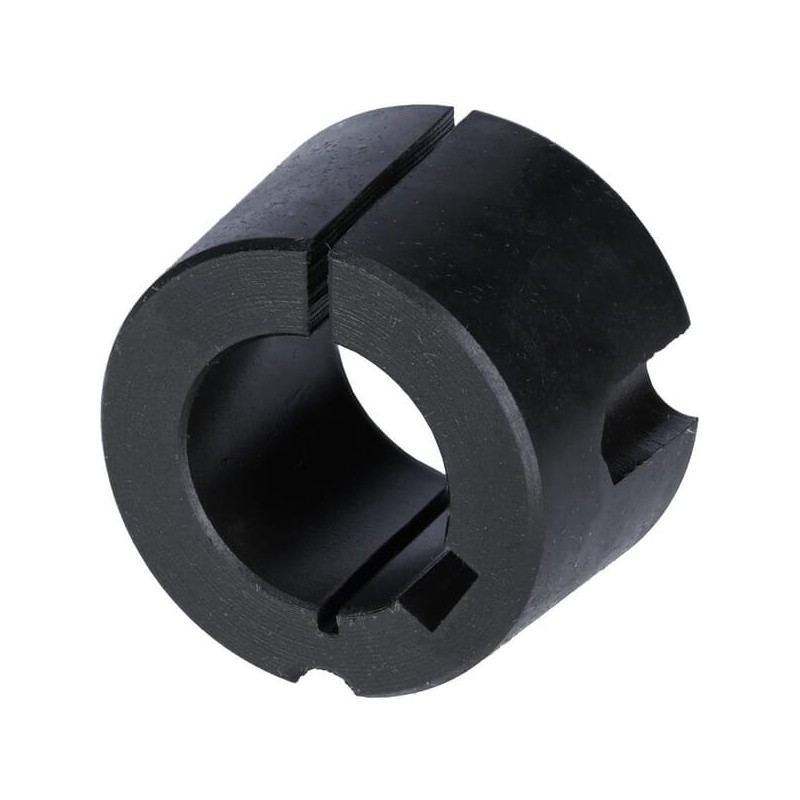

Bushing with conical shank 19 mm Parameters
Part number: 100819TLKR
Unit: piece
Manufacturer: Optibelt
EAN: 8716106095452
Inner diameter [d]: 19 mm
Outer diameter [Dmax]: 35 mm
Total length [L]: 22.3 mm
Groove width: 6 mm
Screw tightening torque: 5.6 N m
Max. operating torque: 136nm
Benefits
- Quick and easy assembly and disassembly - Connection of the shaft to the hub is possible by pressing and forming It consists of
- Taperlock sleeve
- 2 Allen adjustment screws (art. no. 1108INB14)
Technical information
Bushing type 1008 + bore 20 mm = article no. 1008-20TL
Groove according to DIN 6885-1
Bolt thread diameter
- 1/4 inch
- 1/2 inch
