Bushing with conical shank 19mm 110819tlkr optibel
  • Bushing with conical shank 19mm 110819tlkr optibel
  • Bushing with conical shank 19mm 110819tlkr optibel

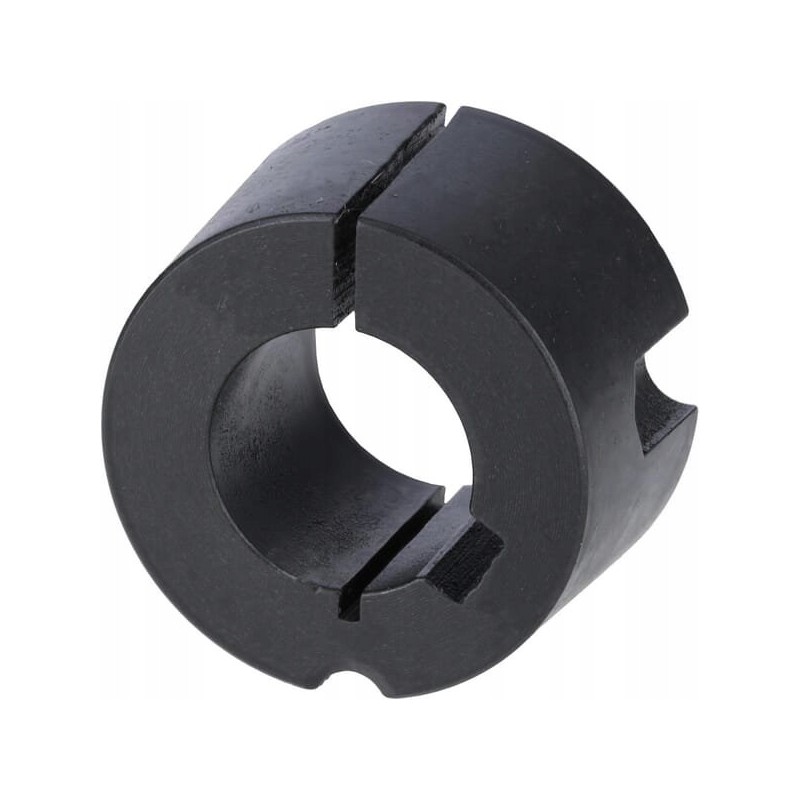

Bushing with conical shank 19mm 110819tlkr optibel

15013120676406
OPTIBELT
£21.68
Quantity
5 Items

Description
Bushing with conical shank 19 mm Parameters

Part number: 110819TLKR

Unit: piece

Manufacturer: Optibelt

EAN: 8716106095599

Inner diameter [d]: 19 mm

Outer diameter [Dmax]: 38 mm

Total length [L]: 22.3 mm

Groove width: 6 mm

Screw tightening torque: 5.6 N m

Max. operating torque: 147nm

Benefits

- Quick and easy assembly and disassembly - Connection of the shaft to the hub is possible by pressing and forming It consists of

- Taperlock sleeve

- 2 Allen adjustment screws (art. no. 1108INB14)

Technical information

Bushing type 1108 + bore 20 mm = article no. 1108-20TL

Groove according to DIN 6885-1

Bolt thread diameter

- 1/4 inch

- 1/2 inch

Product Details
OPTIBELT
15013120676406
110819TLKR
5 Items
New

Data sheet

Manufacturer
OPTIBELT
Part Number
110819TLKR
Original part number
110819TLKR
Replacement part numbers
110819TLKR
