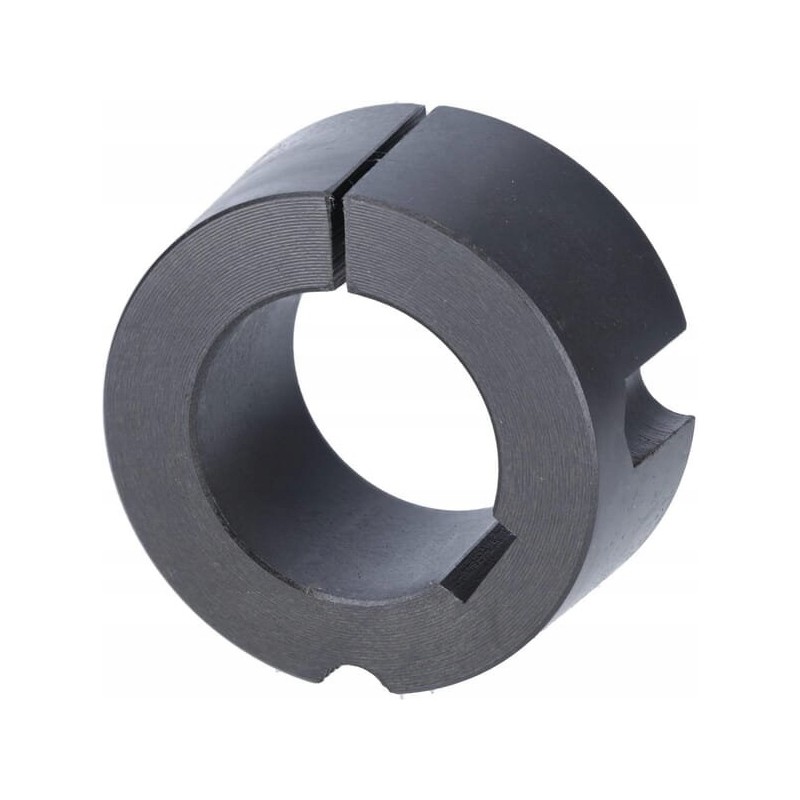

Bushing with conical shank 28mm 251728tlkr optibel
  • Bushing with conical shank 28mm 251728tlkr optibel
  • Bushing with conical shank 28mm 251728tlkr optibel

Bushing with conical shank 28mm 251728tlkr optibel

15013120683274
OPTIBELT
£54.92
Quantity
5 Items

Description
Bushing with conical shank 28 mm Parameters

Part number: 251728TLKR

Unit: piece

Manufacturer: Optibelt

EAN: 8716106096732

Inner diameter [d]: 28 mm

Outer diameter [Dmax]: 85.5 mm

Total length [L]: 44.5 mm

Groove width: 8 mm

Screw tightening torque: 48 N m

Max. operating torque: 1310nm

Benefits

- Quick and easy assembly and disassembly - Connection of the shaft to the hub is possible by pressing and forming It consists of

- Taperlock sleeve

- 2 Allen adjustment screws (art. no. 2517INB12)

Technical information

Bushing type 2517- + bore 20 mm = article no. 2517-20TL

Groove according to DIN 6885-1

Bolt thread diameter

- 1/2 inch

- 1 inch

Product Details
OPTIBELT
15013120683274
251728TLKR
5 Items
New

Data sheet

Manufacturer
OPTIBELT
Part Number
251728TLKR
Original part number
251728TLKR
Replacement part numbers
251728TLKR
