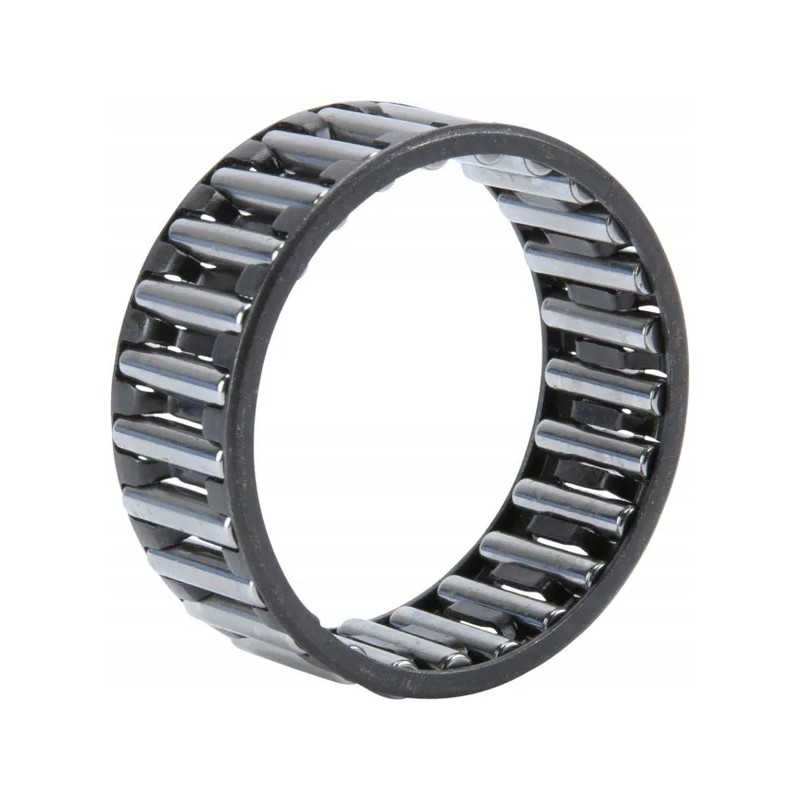

Needle fold

Needle fold

Part number: K. K45X53X20B07

EAN: 4012802966510

Unit: Art

Product description: Needle assemblies

Advantages: Compact design

Product details:

Bearing requires hardened and ground running surfaces

Suitable for radial loads only

TN addition: polyamide cage

FwInner diameter: 45mm

EwOuter diameter: 53mm

BcWidth: 20mm

Bearing type: Needle roller bearings

Seal type: Open

Radial static load: 67000N

Radial dynamic load: 39000N

Rotational speed: 5500 rpm Maximum rotational speed: 10000 rpm Operating temperature min.: -30°C

Operating temperature max.: 140°C

The bearing can be lubricated: Yes OE reference number: K45X53X20-B/0-7

The product fits machines:

Massey Ferguson Series 100 Italian 134V, 134V, 134V, 154F, 154F, 154F, 154V, 154V, 154V, 164TF, 164TF, 164TF, 164TV, 164TV, 164TV, 174F, 174F, 174F, 174V , 174V, 174V, 184F, 184F , 184F, 184S, 184S, 184S, 194F, 194F, 194F, 194S, 194S, 194S

Series 200 Italian 253 Italian, 253 Italian, 253 Italian, 254S Italian, 254S Italian, 254S Italian, 263T, 263T, 263T, 264T, 264T, 264T, 264TS, 264TS, 264TS, 274S, 274S, 274S, 274SK , 274SK, 274SK , 294S, 294S, 294S

Series 230 - 293 273, 293 273, 293 273, 293 283, 293 283, 293 283, 293 293, 293 293, 293 293

Series 254 - 294 274, 294 274, 294 274, 294 284, 294 284, 294 284, 294 294, 294 294, 294 294
