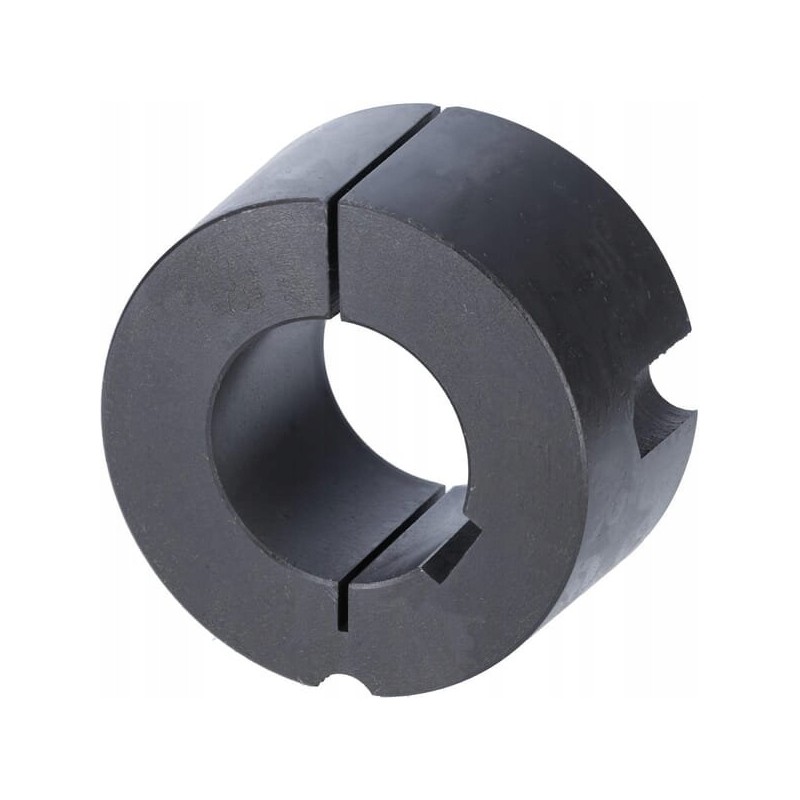

Bushing with conical shank 40 mm 251740tlkr optibe

Bushing with conical shank 40 mm Parameters

Part number: 251740TLKR

Unit: piece

Manufacturer: Optibelt

EAN: 8716106096787

Inner diameter [d]: 40 mm

Outer diameter [Dmax]: 85.5 mm

Total length [L]: 44.5 mm

Groove width: 12 mm

Screw tightening torque: 48 N m

Operating torque max.: 1310nm

Benefits

- Quick and easy assembly and disassembly - Connection of the shaft to the hub is possible by pressing and forming It consists of

- Taperlock sleeve

- 2 Allen adjustment screws (art. no. 2517INB12)

Technical information

Bushing type 2517- + bore 20 mm = article no. 2517-20TL

Groove according to DIN 6885-1

Bolt thread diameter

- 1/2 inch

- 1 inch
