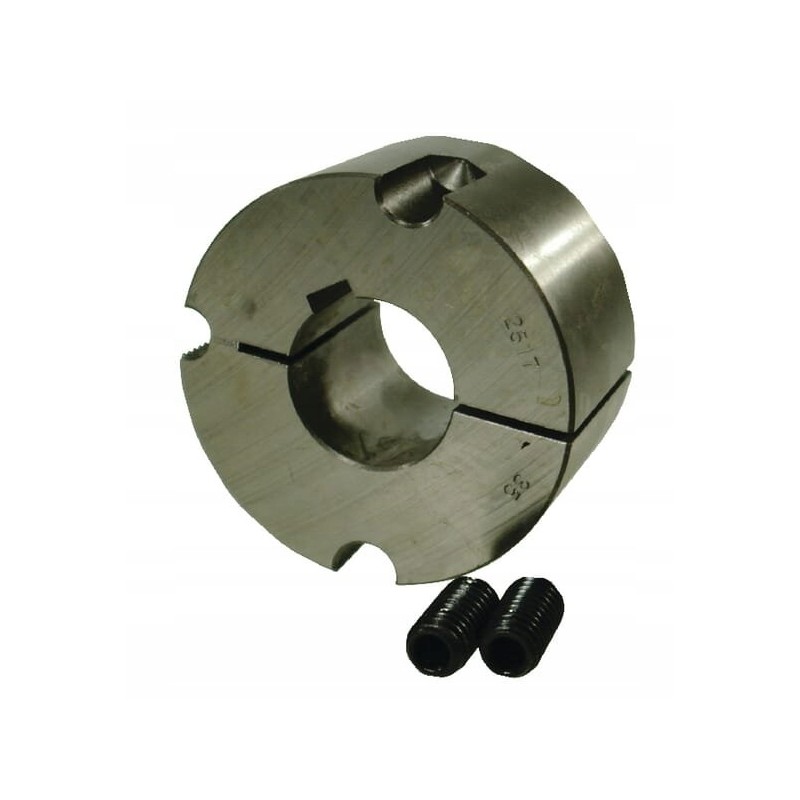

38mm taper shank sleeve 302038tlkr optibel

Bushing with conical shank 38 mm Parameters

Part number: 302038TLKR

Unit: piece

Manufacturer: Optibelt

EAN: 8716106096992

Inner diameter [d]: 38 mm

Outer diameter [Dmax]: 108 mm

Total length [L]: 50.8 mm

Groove width: 10 mm

Screw tightening torque: 90 N m

Operating torque max.: 2710 nm

Benefits

- Quick and easy assembly and disassembly - Connection of the shaft to the hub is possible by pressing and forming It consists of

- Taperlock sleeve

- 2 Allen adjustment screws (art. no. 3020INB58)

Technical information

Type 3020 sleeve + 25 mm hole = article no. 3020-25TL

Groove according to DIN 6885-1

Bolt thread diameter

- 5/8 inch

- 1-1/4 inch
