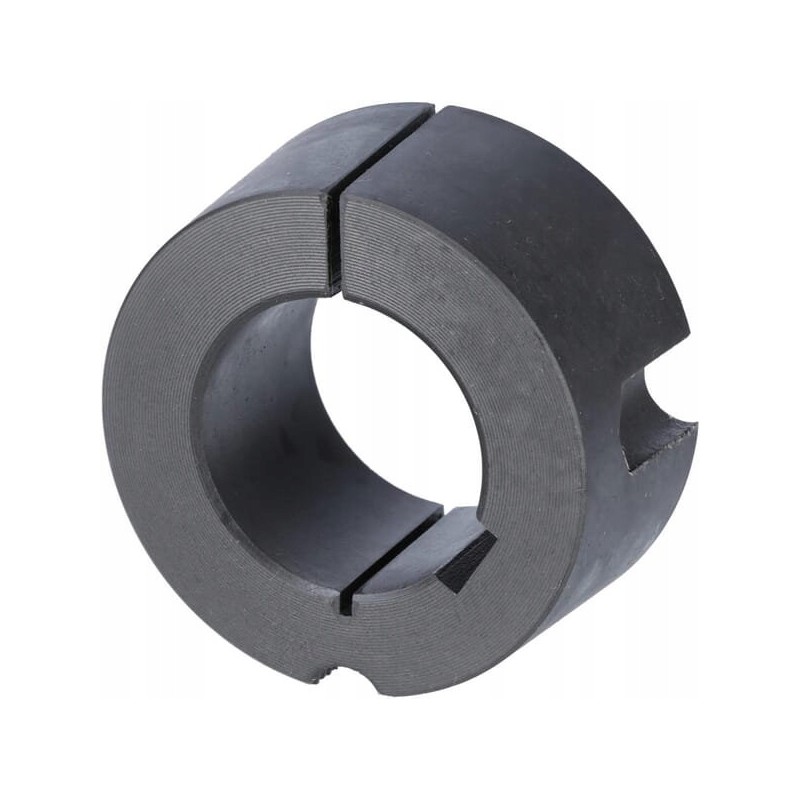

38mm conical shank sleeve 201238tlkr optibel

Bushing with conical shank 38 mm Parameters

Part number: 201238TLKR

Unit: piece

Manufacturer: Optibelt

EAN: 8716106096541

Inner diameter [d]: 38 mm

Outer diameter [Dmax]: 70 mm

Total length [L]: 31.8 mm

Groove width: 10 mm

Screw tightening torque: 30.4 N m

Working torque max.: 808nm

Benefits

- Quick and easy assembly and disassembly - Connection of the shaft to the hub is possible by pressing and forming It consists of

- Taperlock sleeve

- 2 Allen adjustment screws (art. no. 2012INB716)

Technical information

Bushing type 2012 + 20 mm hole = article no. 2012-20TL

Groove according to DIN 6885-1

Bolt thread diameter

- 7/16 inch

- 7/8 inch
