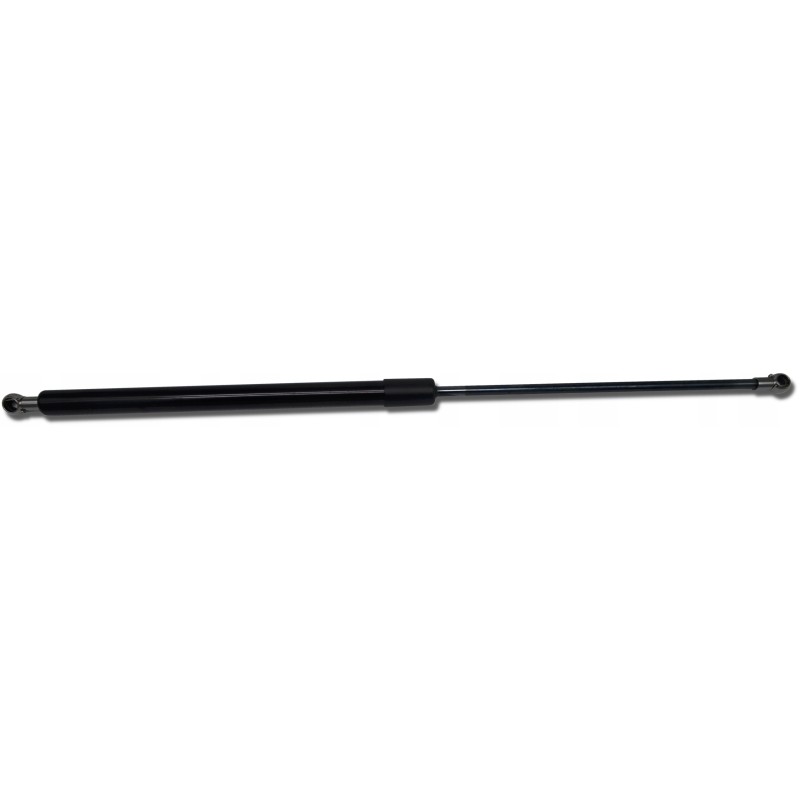

Gas motor 588mm 150n windshield case

Windshield gas actuator for CASEKOD SKRAW-MET tractors: [3209]_____________________________________________________________________

Used in agriculture and specialized equipment, this model is compatible with CASE

TS100A, 110A, 115A, 125A, 135ATM 115, 125, 135, 150, 160, 120, 130, 140, 155, 175, 190

Depending on the model, gas cylinders are adapted to work in: agricultural machines, tractors, sprayers, rounds, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

Application: windshields of CASE tractors.

Technical specifications: Length of the folded actuator: 333mm

Length of the unfolded actuator: 588 mm

Actuator stroke: 255mm

Piston diameter: 8mm

Cylinder diameter: 19mm

Mounting socket diameter: 10mm

Range temperatures: -20°C to +70°C

Dimensions (including the folded or unfolded actuator) are measured from the center to the center of the hole or mounting thread.

Advantages of gas actuators: No power source.

Transfer of high force with relatively small size.

Long service life and guarantee of failure-free operation of the actuator.

Very easy and quick installation.

Wide application and versatility, from agricultural machines to furniture.

Adapted to work at various temperatures.

Telescopes are designed individually for each model. The whole thing is mounted to the factory technological holes of the vehicle, without the need for drilling or other processing.
