V-belt spz 825 gates delta spz825ca

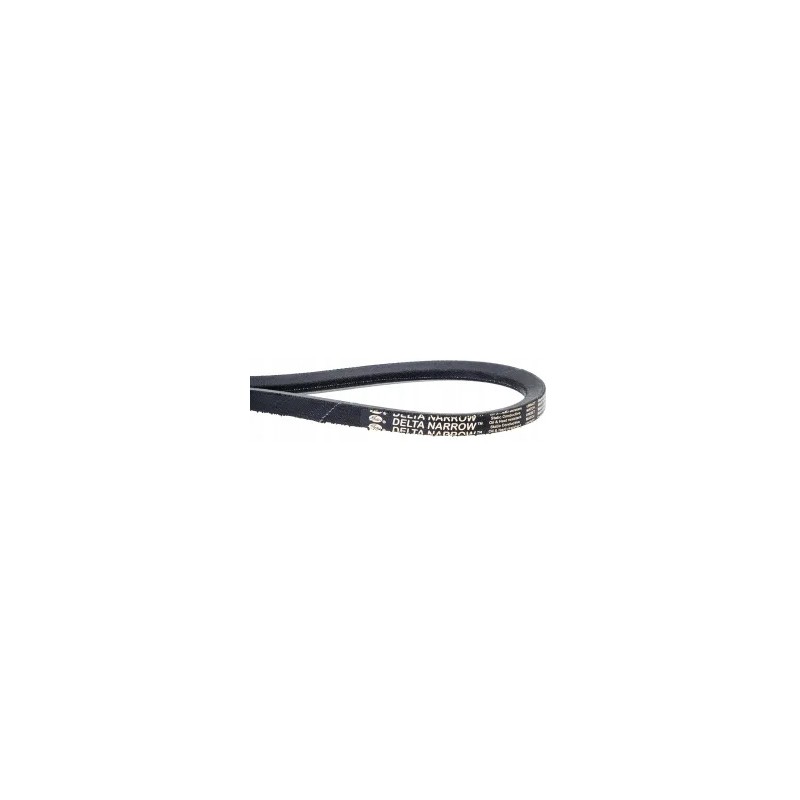

SPZ 825 Gates Delta SPZ825CA V-Belt

Unit - Piece

Specifications:

Swivel Arm

Large power reserve

Application:

Construction machinery

Agricultural machinery

Gardening machinery

Properties:

High quality rubber from which the strap is made

Durable polyester fibers protect against tensile forces, material fatigue and sudden loads

Appropriate for operation at temperatures from -30°C up to +70°C

Antistatic (ISO 1813) and compliant with the REACH regulation and the RoHS 2 directive

Technical information:

Inner length = division length - 38 mm

External length = division length + 13 mm

Benefits - Guarantee of good flexibility, stability and smooth operation

Profile - SPZ

Base length - 825 mm

Width - 10 mm

Bottom width - 6.4 mm

Height - 8 mm

Inner length - 787 mm

External length - 838 mm

Material - Styrene-butadiene rubber (SBR)

Core material - Polyester

Operating temperature min. - -30 °C

Operating temperature max. - 70 °C

Pulley diameter min. - 67 mm

Number of sections {grooves} - 1

Punched - No

Low length tolerance - No

Serrated - No< p>

To the tensioner - No

Oil resistance - Yes

Electrical discharge - No

With additional external layer - Yes
