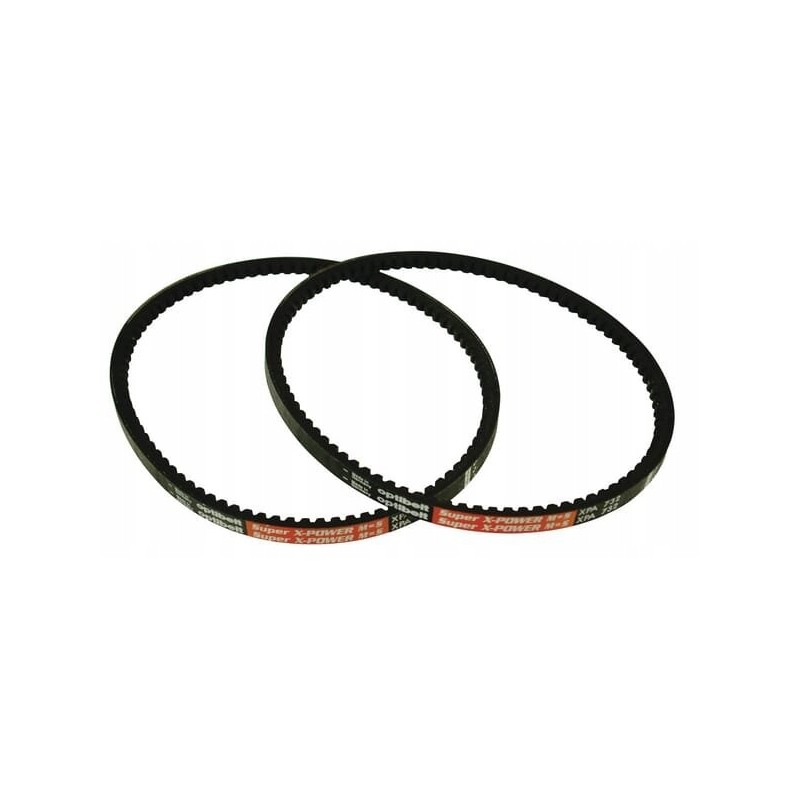

Toothed V-belt lw ms xpb1360 optibelt

Toothed V-belt Lw M=S Parameters

Part number: XPB1360

Unit: piece

Manufacturer: Optibelt

EAN: 4014486653977

Profile: XPB

Base length: 1360 mm

Width: 16.3 mm

Bottom width: 7.3 mm

Height: 13 mm

Internal length : 1300 mm

External length: 1382 mm

Material: Rubber

Core material: Polyester

Operating temperature min.: -30 °C

Operating temperature max.: 90 °C

Pulley diameter min.: 112 mm

Number of sections {grooves}: 1

Punched: No

Small length tolerance: Yes

Serrated: Yes

For tensioner: No

Oil resistance: Yes

Weight: 0.156 kg/m

Discharge of electrical charges: No

With additional outer layer: No

Note: All narrow V-belts of the Optibelt Super TX M=S (Matched Sets) version with the same nominal length can be combined into sets without the need for measurement.

Specifications

- Low stretch

- 20% higher strength compared to Optibelt Super X-power

belts Benefits

- Maintenance-free

- Long service life.

Application

- Machine construction

- Machine tools

- Small pulley diameters and high rotational speed Properties

- Precise, quiet operation - Resistant to high temperatures - All Optibelt Super TX M=S V-belts (matched sets) can be used as a set without measurement.

Technical information

- Successor of the Optibelt Super X-power belt

- Suitable for drives with external tension rollers - Internal length = division length - 60 mm

- External length = division length + 22 mm
