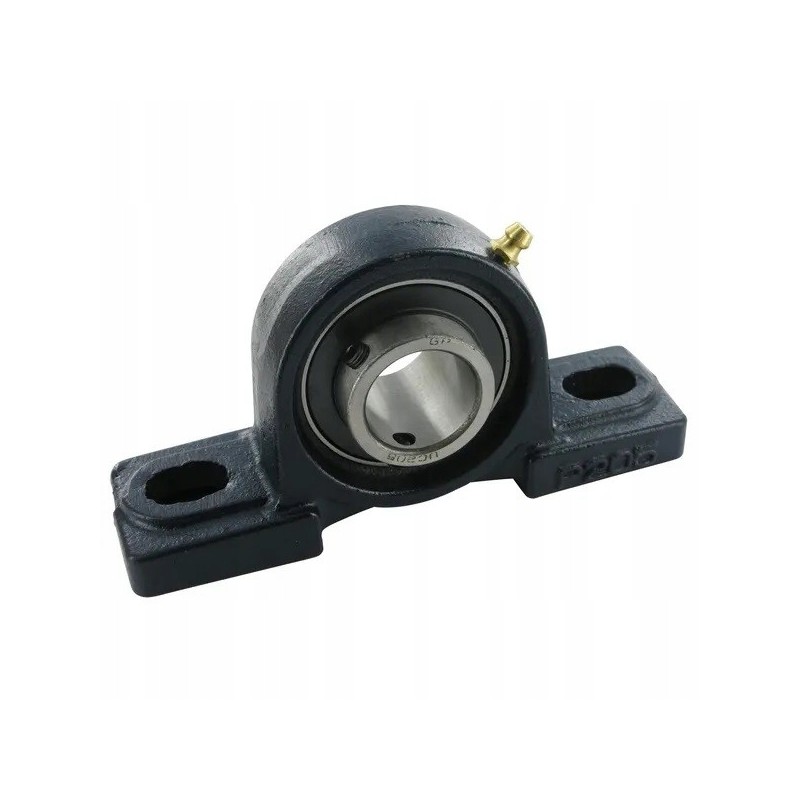

Complete bearing with vertical housing

Product Description Plummer block ball bearing units are pre-assembled and greased. Thanks to this, they can be installed quickly. Self-aligning spherical ball bearing outer ring with wide inner ring compensates for shaft misalignment. Show less Advantages

Perfect for limited installation spaces.

Assembled, ready to use

Pre-lubricated

Product details

The inner bearing has an inner ring extended on both sides with 2 adjustment screws Lubricable

Self-aligning ball bearing

Ball bearing with wide inner ring Please note: the color may differ from that shown in the photo Contains

Bearing housing

Bearing

Grease nipple

Housing type Plumber housing dInner bearing diameter. 25 mm aTotal length 140 mm bHousing width 38 mm WTotal height 70 mm BiWidth of the inner ring of the bearing 34 mm hVertical position of the shaft/shaft 36.5 mm nPosition of the bearing balls in relation to the mounting surface 14.3 mm eSpacing of mounting holes 105 mm
