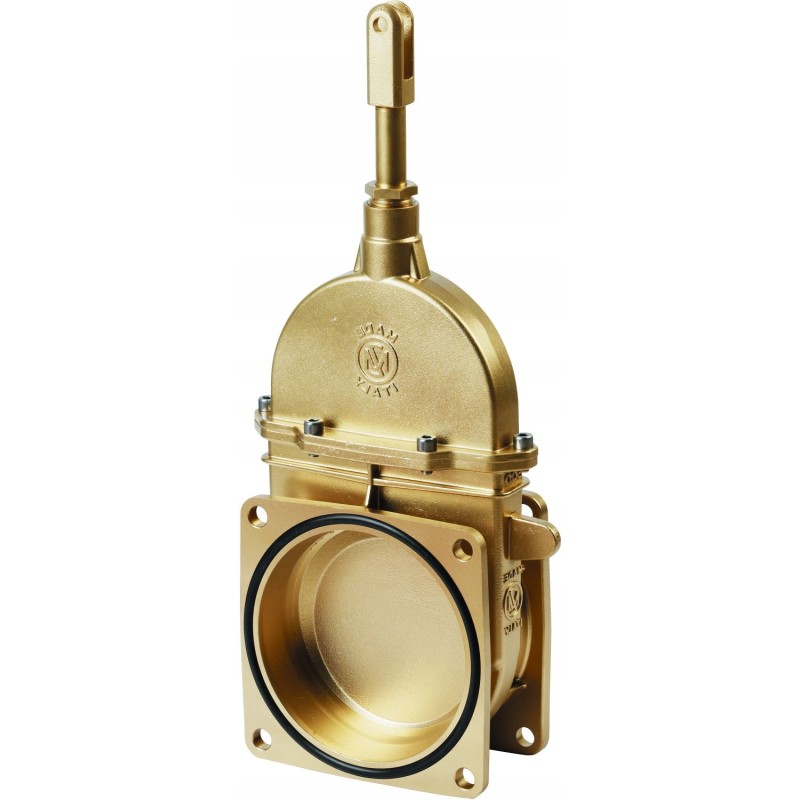

Slide valve, double-flange mounting 6

Slide valve mounting - Double flanged 6' MZ 72331

Technical data:

Maximum pressure, bar: 2.5 Bar

Maximum pressure, psi: 35 psi

Height: 490mm

Width 180mm

Depth: 90mm

distance between holes: 150x150mm

Operating temperature: - 15°C/+80°C

Ø ins: 6 Ø mm: 145 A Ø ins: 6 A Ø mm: 145 B mm: 90 C mm: 490 D mm: 400 E mm: 324 F mm: 150 G mm: 180 Depth mm: 90 H mm: 107.5 I mm: 13 Maximum pressure bar: 2.5 Maximum pressure, psi: 35 distance between holes mm: 150x150 Hole Ø mm: 13 Manufacturer: Metaltecnica Related products: 11654,22923 ,22928,79071,79074,79093,79098,79120,79218,79296 Size inches: 6 Width in mm: 180 Tariff Code: 8436990000 Operating temperature: -15°C/+80°C Type: Double flanged Height mm: 490 < p>

Manufacturer: Sparex
