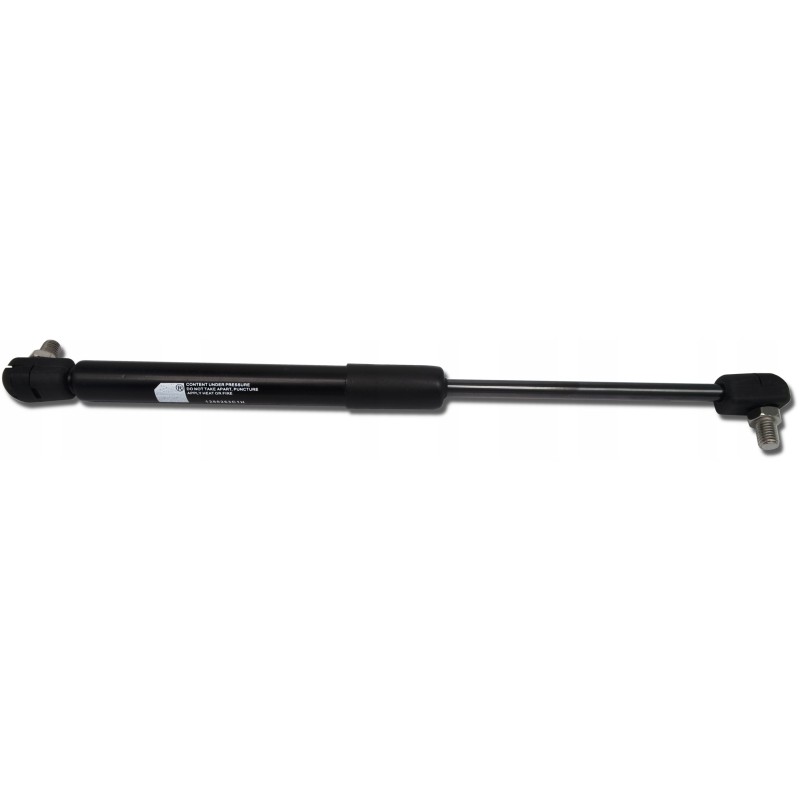

Telescope gas actuator 325mm 280n door case

Tractor door gas actuator CASEKOD SKRAW-MET: [3174]_________________________________________________________

Used in agriculture and specialized equipment, this model is compatible with CASE tractors in models:

Magnum7110, 7120, 7130, 7140, 7210, 7220, 7230, 7240, 7250, 8910, 8920, 8930, 8940, 8950

MX180, 200, 210, 220, 230, 240, 255, 270, 285

Gas actuators are adapted, depending on the model, to work in: agricultural machines, tractors, sprayers, aurochs, cyclops , HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

Application: doors of CASE tractors.

Technical specifications: Length of the folded cylinder: 190 mm

Length of the unfolded cylinder: 325 mm

Cylinder stroke: 135 mm

Piston diameter : 8mm

Cylinder diameter: 18mm

Mounting socket diameter: 10mm

Thread diameter: 8mm

Temperature range: -20°C to +70°C

Dimensions (including the folded or unfolded actuator) are measured from the center to the center of the hole or mounting thread.

Advantages of gas actuators: No power source required.

Transfer of high force with relatively small dimensions.

Long service life and guarantee of failure-free operation of the actuator.

Very easy and quick installation.

Wide application and versatility, from agricultural machines to furniture .

Adapted to work at various temperatures.

Telescopes are designed individually for each model. The whole thing is mounted to the factory technological holes of the vehicle, without the need for drilling or other processing.
