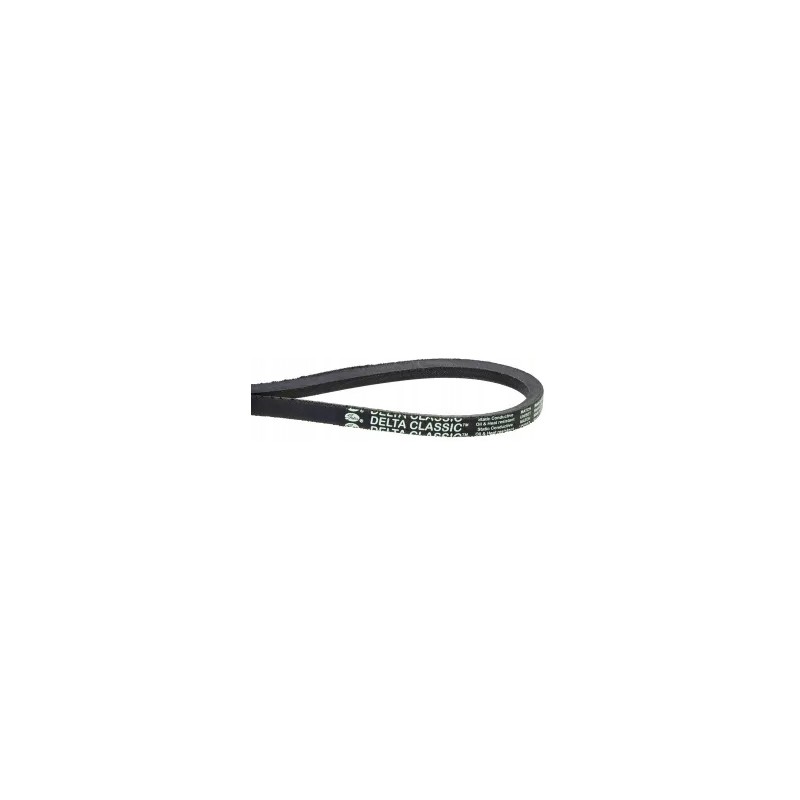

V-belt z10x703li 725ld gates delta z703ca

Z10x703Li V-belt, 725Ld Gates Delta Z703CA

Unit - Piece

Specifications - Flex-Weave® wrap provides good oil resistance, excellent adhesion and protects against abrasion

Application:

Construction machinery

Agricultural machinery

Gardening machinery

Properties:

High quality rubber from which the strap is made

Durable polyester fibers protect against tensile forces, material fatigue and sudden loads

Appropriate for operation at temperatures from -30°C to +70°C

Antistatic (ISO 1813) and compliant with REACH and RoHS 2

Technical information:

Split length = internal length + 22 mm

External length = internal length + 38 mm

Benefits - Guarantee of good flexibility, stability and smooth operation

Profile - Z/10

Base length - 725 mm

Width - 10 mm

Bottom width - 5.9 mm

Height - 6 mm

Length ext. - 703 mm

External length - 741 mm

Material - Styrene-butadiene rubber (SBR)

Core material - Polyester

Operating temperature min. - -30 °C

Operating temperature max. - 70 °C

Pulley diameter min. - 45 mm

Number of sections {grooves} - 1

Punched - No

Low length tolerance - No

Serrated - No< p>

To the tensioner - No

Oil resistance - Yes

Electrical discharge - No

With additional external layer - Yes
