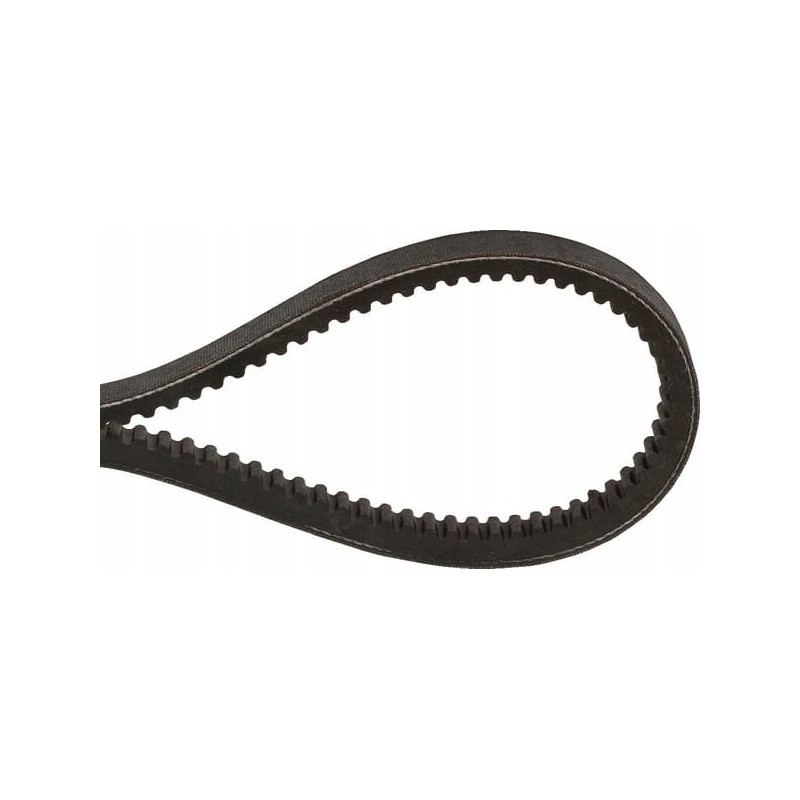

Toothed V-belt bx 17x1005 ld bx171005 optibe

Toothed V-belt BX/17 x 1005 Ld Parameters

Part number: BX171005

Unit: piece

Manufacturer: Optibelt

EAN: 4014486096330

Base length: 1005 mm

Min. pulley diameter: 90 mm

Number: BX38

Note: All narrow V-belts of the Optibelt Super TX M=S version with of the same nominal length can be assembled into sets without the need to measure.

Specifications

- Better abrasion resistance Benefits

- Longer service life

Application

- Machine construction

- Machine tools

- Motor vehicles

Properties

- Very high conductivity - Exceptional resistance to high temperatures and oils - Only slight stretch.

- V-belts can be used as a set Technical information

- External length = division length + 29 mm

- Internal length = division length - 40 mm
