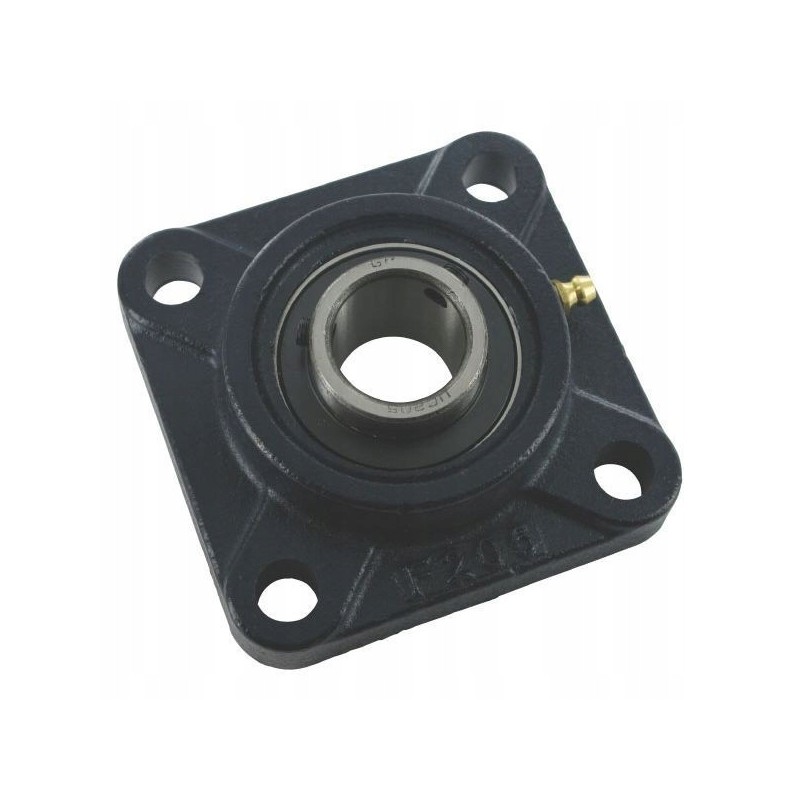

Ucf207gp bearing with square housing, complete

Bearing with square housing, complete INDEX: UCF207GP

Part number: UCF207GP

Unit: piece

Technical information: - Note: color may differ from the image

Features: - The inner bearing has an inner ring extended on both sides with 2 adjustment screws

Total height: 44.4 mm

Diameter of mounting holes: 14mm

Housing type: Square flange

d Inner bearing diameter: 35 mm

a Total length: 117 mm

l Housing height: 34 mm

Bi Bearing inner ring width: 42.9 mm

Position of the bearing balls relative to the end of the shaft/roller: 19 mm

l Location bearing balls relative to the mounting surface: 17.5mm

e Spacing of mounting holes: 92mm
