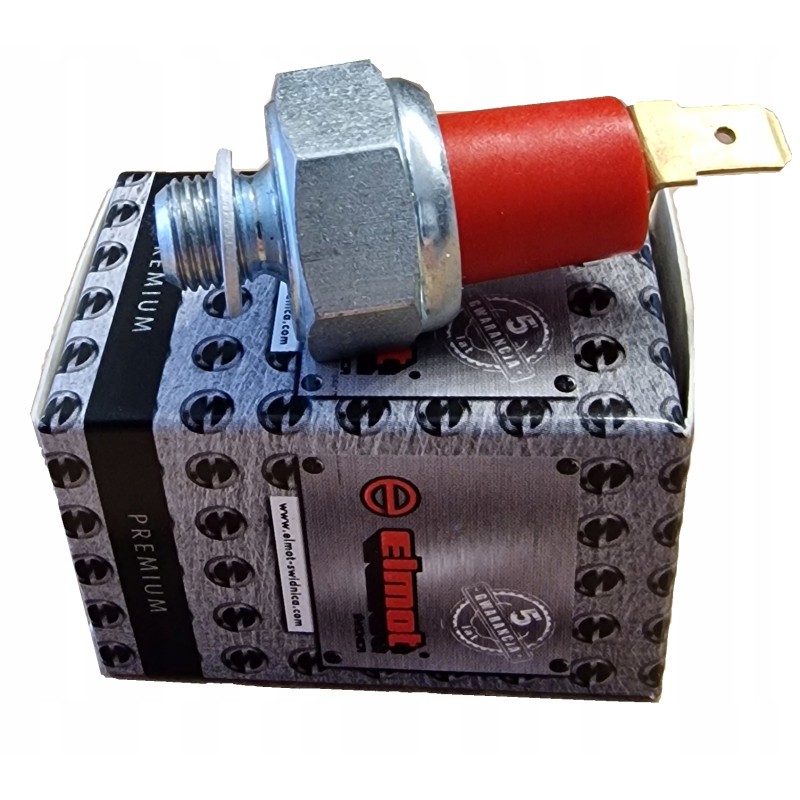

Oil pressure sensor C-330 C-360 Manufacturer: ELMOTApplication: Ursus C-330 and derivatives
Ursus C-360 and derivatives
Catalog number: 50766460
Specification: correct pressure range – 0.05 to 0.12MPa
permissible maximum pressure - 1.5 MPa current load 12V/0.5A (bulb)
The switch has a hexagonal body 6-angle 21
M10x1 threaded end with sealing washer Electrical connection with a 6.3x0.8 plug according to PN-76/E-06300/09
The switch is adjusted and ready for operation
