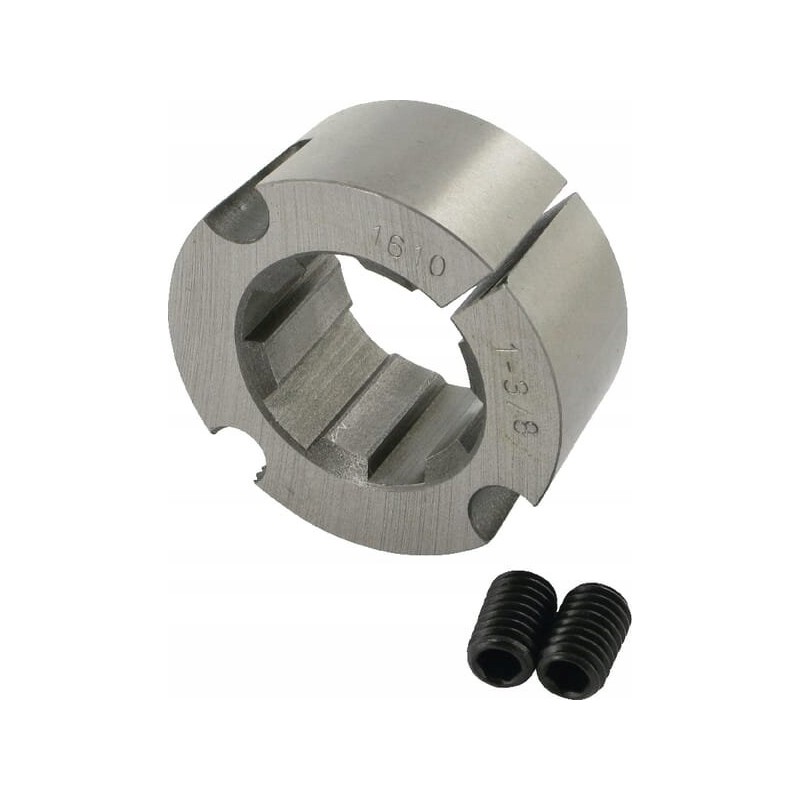

Bushing with conical shank 1 3 8 z6 1610138t
  • Bushing with conical shank 1 3 8 z6 1610138t
  • Bushing with conical shank 1 3 8 z6 1610138t

Bushing with conical shank 1 3 8 z6 1610138t

15013120678477
OPTIBELT
£37.42
Quantity
5 Items

Description
Bushing with conical shank 1 3/8' Z6 Parameters

Part number: 1610138TLKR

Unit: piece

Manufacturer: Optibelt

EAN: 8716106096015

Inner diameter [d]: 34.92 mm

Inner diameter: 1-3/8 inch

Outer diameter [Dmax]: 57 mm

Total length [L]: 25.4 mm

Keyway width: 9.53 mm

Torque screw tightening: 19.6 N m

Working torque max.: 486 N m

Size: 3/8 inch

Benefits

- Quick and easy assembly and disassembly - Connection of the shaft to the hub is possible by pressing and forming It consists of

- Taperlock sleeve

- 2 Allen adjustment screws (art. no. 1210INB38)

Technical information

Bushing type 1610 + bore 20 mm = article no. 1610-20TL

Groove according to DIN 6885-1

Bolt thread diameter

- 3/8 inch

- 5/8 inch

Product Details
OPTIBELT
15013120678477
1610138TLKR
5 Items
New

Data sheet

Manufacturer
OPTIBELT
Part Number
1610138TLKR
Original part number
1610138TLKR
Replacement part numbers
1610138TLKR
