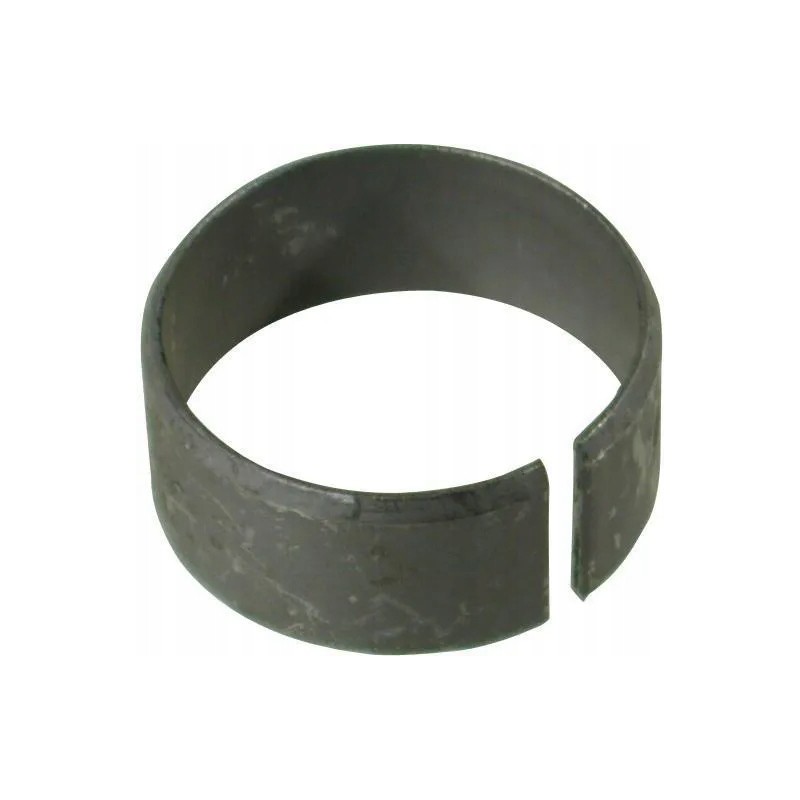

Kramp spring sleeve 45x55x30 mm steel DIN 149

Kramp spring sleeve, 45x55x30 mm, steel, DIN 1498

Part number: K. 1498455530

EAN: 8719607112574

Unit: Art

Product description: Spring bushing for use as a stop element, made of rolled and hardened spring steel, DIN 1498. Spring bushings are ideal for applications where high loads and low speeds occur, under severe conditions, without lubrication. They have conical ends for easy assembly and disassembly. Spring sleeves are pressed into the hole so that the gap is not in the load zone, but is offset by approximately 90° in relation to the direction of force. Show more

Product details: Dimensions = internal Ø x external Ø x length

D outer diameter: 55mm

dInner diameter: 45mm

Length: 30mm

Material: Steel

DIN standard: 1498

Quantity in collective packaging: 10 pcs.

Quantity in package: 1 pc.

Material: Steel
