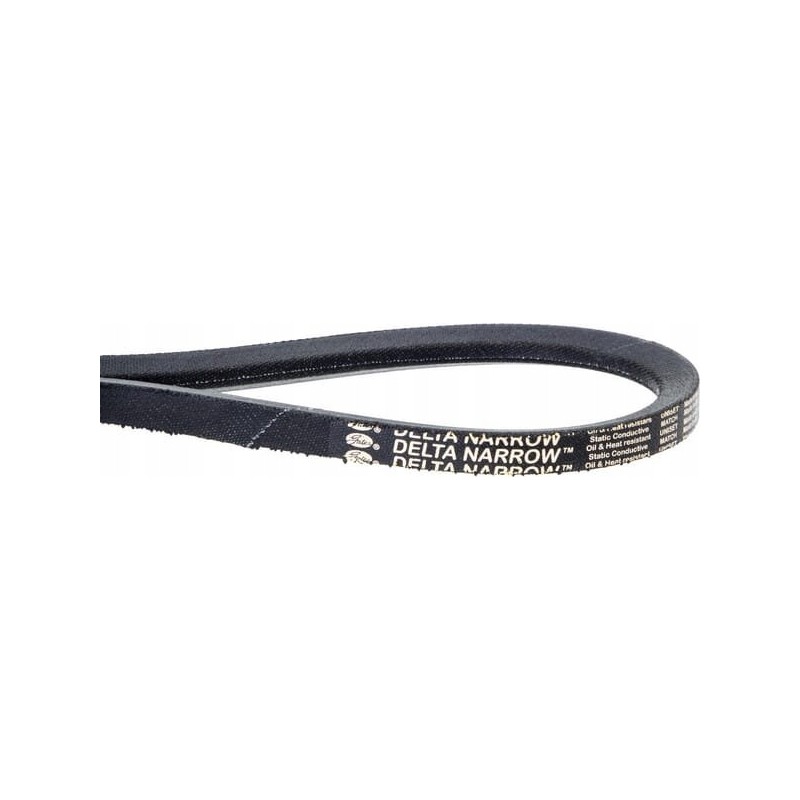

V-belt spz 887 spz887ca gates delta

SPZ 887 V-belt Parameters

Part number: SPZ887CA

Unit: Piece

Manufacturer: Gates Delta

EAN: 5414465307782

Profile: SPZ

Base length: 887 mm

Width: 10 mm

Bottom width: 6.4 mm

Height: 8 mm

Internal length: 849 mm

External length: 900 mm

Material: Styrene-butadiene rubber (SBR)

Core material: Polyester

Operating temperature min.: -30 °C

Operating temperature max.: 70 °C

Pulley diameter min. .: 67 mm

Number of sections {grooves}: 1

Punched: No

Small length tolerance: No

Serrated: No

To the tensioner: No

Oil resistance: Yes

Electrical discharge: No

With additional outer layer: Yes< p>

Quantity in package: 1 pc.

Specifications

- Swivel arm

- Large power reserve

Application

- Construction machinery

- Agricultural machinery

- Garden machinery

Properties

- High quality rubber, from which the belt is made

- Durable polyester fibers protect against tensile forces, material fatigue and sudden loads

- Suitable for operation at temperatures from -30°C to +70°C< p>

- Antistatic (ISO 1813) and compliant with REACH and RoHS 2

Technical information

- Internal length = division length - 38 mm

- External length = division length + 13 mm

Benefits

- Guarantee of good flexibility, stability and smooth operation
