Powerful electric motor gear 90b5 and 80

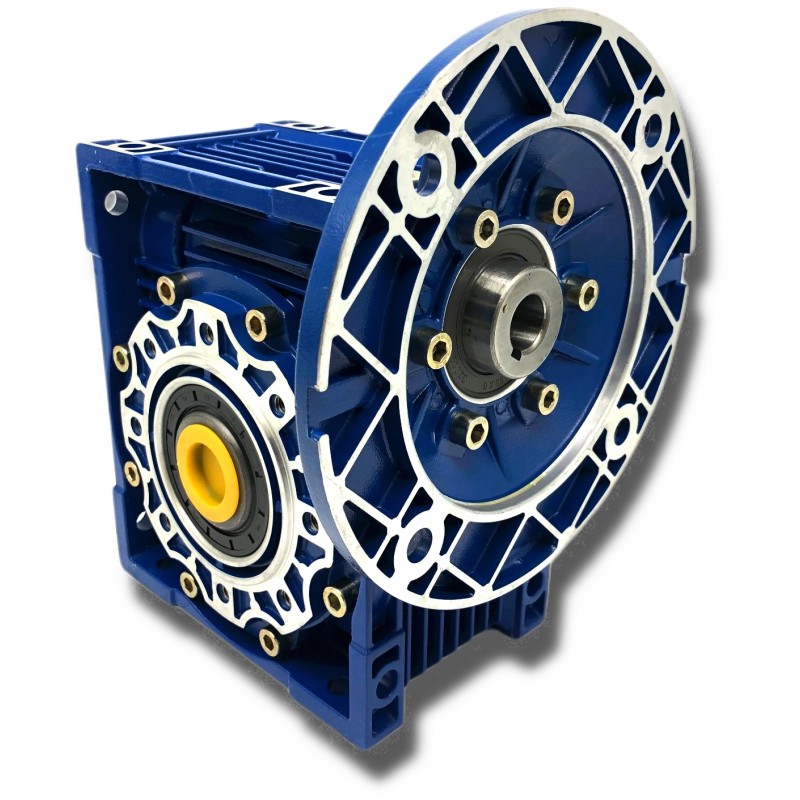

Electric motor gearbox / gearmotor with flange 90B5 SKRAW MET CODE: [3528] Manufacturer: SM-G (SKRAW MET GROUP) Symbol: PM--090 Mounting type: flange Gear ratio: i = 80 THE SET INCLUDES SCREWS WITH NUTS AND WASHERS A cylindrical gear motor is an electromechanical system drive whose task is to change the rotational speed and torque.

ERC gears with helical gears are a new generation of mechanical-electric products designed as a modular system for feeding systems on poultry farms.< p>

Dedicated to reducing the drive of MS 90 electric motors with a mounting flange (B5) and a Φ24 mm drive shaft.

They work with regular motors, brake motors, explosion-proof motors, and motors powered by inverters, servo motors, IEC motors, etc.

Main features:- Extremely durable, very good quality

- Excellent heat dissipation ensures continuous operation under load

- It guarantees long-term and failure-free operation

The gears are lubricated with synthetic oil with a viscosity of VG 320.

It is ideal as a replacement for geared motors from companies such as: NMRV Motovario

WMI STM

Technical specifications:Pm: 200mm

Dm: 24mm

bm: 8mm

tm: 27.3mm

Collar dimensionsP: 200mm

M: 165mm

N: 130mm

D: 24mm

Additionally, the set includes a side cover for the gearmotor, complete with four mounting screws. It fits both the left and right side, it is universal.
