Powerful electric motor gear 90b5 and 100

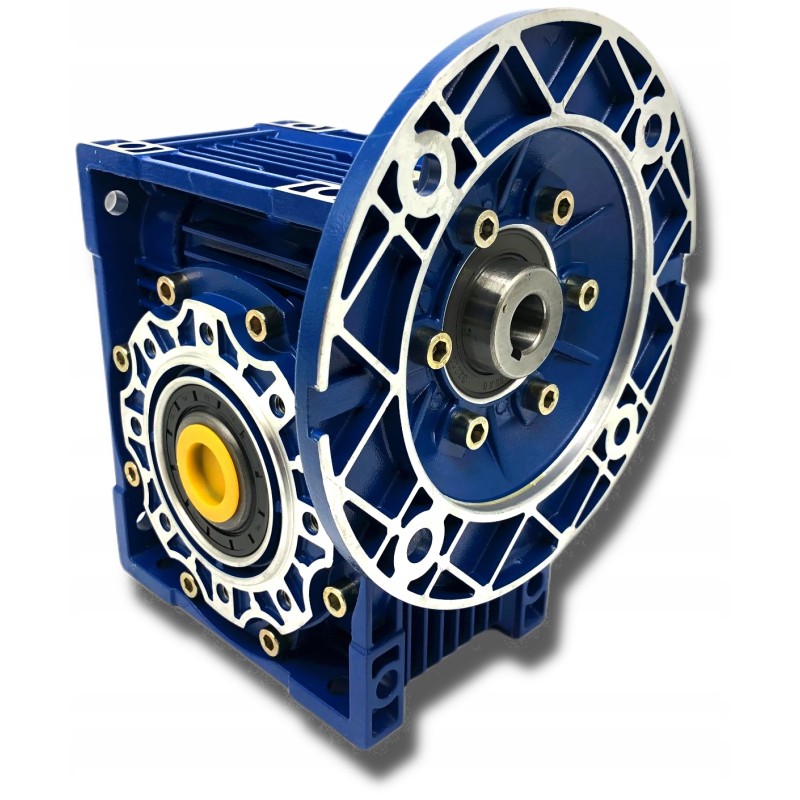

Electric motor gearbox / gearmotor with flange 90B5 SKRAW MET CODE: [3529] Manufacturer: SM-G (SKRAW MET GROUP) Symbol: PM--090 Mounting type: flange Gear ratio: i = 100 THE SET CONTAINS SCREWS WITH NUTS AND WASHERS The cylindrical gear motor is an electromechanical system drive whose task is to change the rotational speed and torque.

ERC gears with helical gears are a new generation of mechanical-electric products designed as a modular system for feeding systems on poultry farms.< p>

Dedicated to reducing the drive of MS 90 electric motors with a mounting flange (B5) and a Φ24 mm drive shaft.

They work with regular motors, brake motors, explosion-proof motors, and motors powered by inverters, servo motors, IEC motors, etc.

Main features:- Extremely durable, very good quality

- Excellent heat dissipation ensures continuous operation under load

- It guarantees long-term and failure-free operation

The gears are lubricated with synthetic oil with a viscosity of VG 320.

It is ideal as a replacement for geared motors from companies such as: NMRV Motovario

WMI STM

Technical specifications:Pm: 200mm

Dm: 24mm

bm: 8mm

tm: 27.3mm

Collar dimensionsP: 200mm

M: 165mm

N: 130mm

D: 24mm

Additionally, the set includes a side cover for the gearmotor, complete with four mounting screws. It fits both the left and right side, it is universal.
