Electric motor gear 100 112b5 and 25

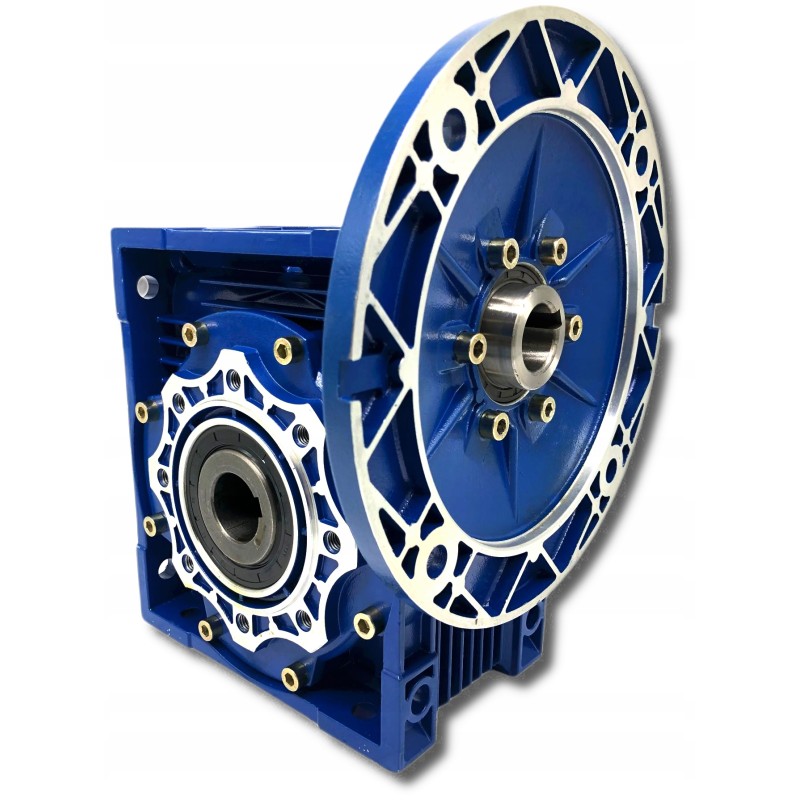

Electric motor gearbox / gearmotor with flange 100/112B5 SKRAW MET CODE: [3517] Manufacturer: SM-G (SKRAW MET GROUP) Symbol: PM--090 Mounting type: flange Gear ratio: i = 25 THE SET INCLUDES SCREWS WITH NUTS AND WASHERS The cylindrical gear motor is electromechanical drive system whose task is to change the rotational speed and torque.

ERC gears with helical gears are a new generation of mechanical-electric products designed as a modular system for feeding systems on poultry farms .

Dedicated to reducing the drive of MS 100/112 electric motors with a mounting flange (B5) and a Φ28 mm drive shaft.

Works with regular motors, brake motors, explosion-proof motors , motors powered by inverters, servo motors, IEC motors, etc.

Main features:- Extremely durable, very good quality

- Excellent heat dissipation ensures continuous operation under load

- Guarantees long-term and failure-free operation

The gears are lubricated with synthetic oil with a viscosity of VG 320.

Ideally suitable as a replacement for geared motors from companies such as: NMRV Motovario

WMI STM

Technical specifications:Pm: 250mm

Dm: 28mm

bm: 8mm

tm: 31.3mm< p>

Flange dimensionsP: 250mm

M: 215mm

N: 180mm

D: 28mm

Additionally included in the set there is a side cover for the gearmotor, complete with four mounting screws. It fits both the left and right side, it is universal.
